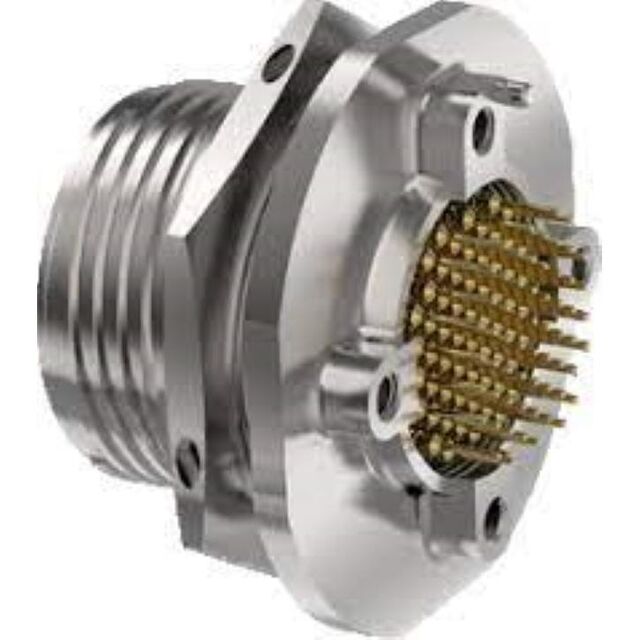

806-022-MT11-19F1CD
ActiveGlenair
CIRCULAR CONNECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
806-022-MT11-19F1CD
ActiveGlenair
CIRCULAR CONNECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 806-022-MT11-19F1CD |
|---|---|
| Applications | Aerospace |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 19 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | D |
| Shell Finish | PTFE, Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 19 |
| Shell Size - Insert [Min] | 11 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3754.15 | |
| 5 | $ 3603.99 | |||
| 10 | $ 3453.82 | |||
| 25 | $ 3303.65 | |||
Description
General part information
806-022-MT11-19F1CD
19 Position Circular Connector Receptacle, Female Sockets Solder Cup
