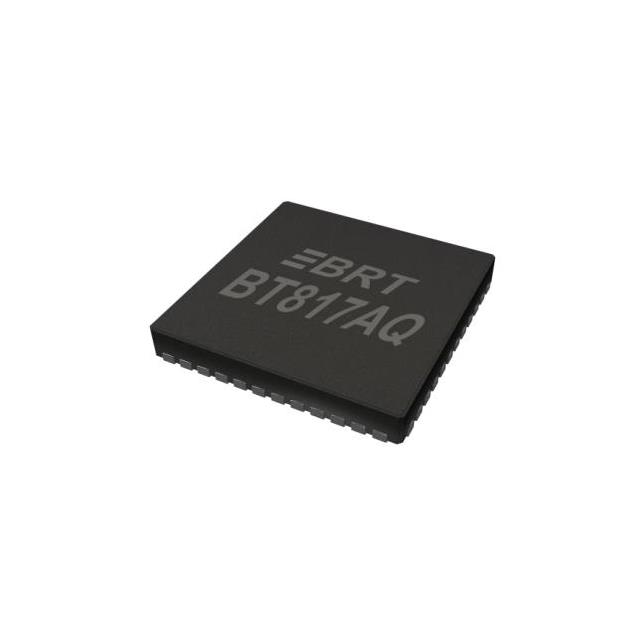

BT817AQ-R
ActiveBridgetek Pte Ltd.
EVE4 GRAPHICS CONTROLLER IC WITH
Deep-Dive with AI
Search across all available documentation for this part.
BT817AQ-R
ActiveBridgetek Pte Ltd.
EVE4 GRAPHICS CONTROLLER IC WITH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT817AQ-R |
|---|---|
| Applications | Human Machine Interfaces (HMI) |
| Controller Series | BT81X |
| Interface | QSPI, LED, LCD, SPI |
| Mounting Type | Surface Mount |
| Number of I/O | 4 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 64-WFQFN Exposed Pad |
| Program Memory Type | FLASH |
| Supplier Device Package | 64-VQFN (9x9) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.55 | |
| 10 | $ 15.74 | |||
| 25 | $ 14.25 | |||
| 100 | $ 12.59 | |||
| 250 | $ 11.78 | |||
| 500 | $ 11.50 | |||
| Digi-Reel® | 1 | $ 21.55 | ||
| 10 | $ 15.74 | |||
| 25 | $ 14.25 | |||
| 100 | $ 12.59 | |||
| 250 | $ 11.78 | |||
| 500 | $ 11.50 | |||
| Tape & Reel (TR) | 2600 | $ 11.89 | ||
Description
General part information
BT817AQ-R
EVE4 GRAPHICS CONTROLLER IC WITH
Documents
Technical documentation and resources
No documents available
