HQ0603Q1N9CT01
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 1.9NH 600MA 120MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HQ0603Q1N9CT01 |
|---|---|
| Current Rating (Amps) | 600 mA |
| DC Resistance (DCR) | 120 mOhm |
| Frequency - Self Resonant | 10 GHz |
| Height - Seated (Max) [Max] [z] | 0.017 in |
| Height - Seated (Max) [Max] [z] | 0.42 mm |
| Inductance | 1.9 nH |
| Inductance Frequency - Test | 500 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Q @ Freq | 20, 500 MHz |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.6 mm |
| Size / Dimension [x] | 0.024 " |
| Size / Dimension [y] | 0.3 mm |
| Size / Dimension [y] | 0.012 " |
| Supplier Device Package | 0201 |
| Tolerance | 0.2 nH |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 15000 | $ 0.05 | |
Description
General part information
HQ0603Q1N9CT01

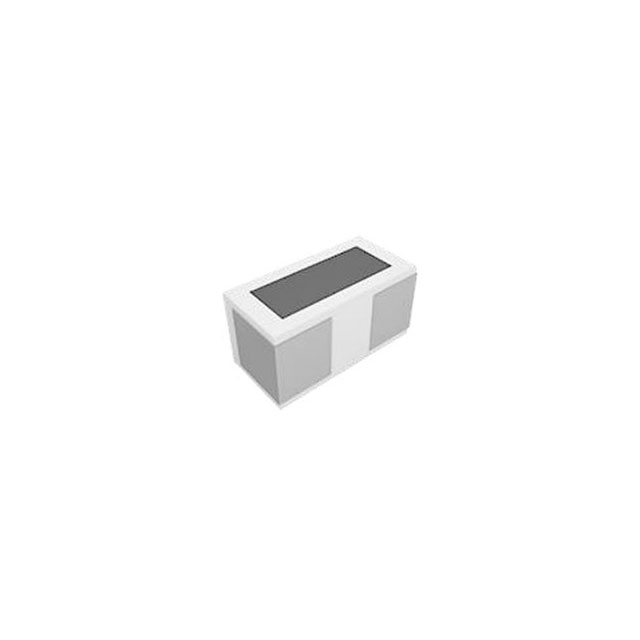

1.9 nH Unshielded Multilayer Inductor 600 mA 120mOhm Max 0201 (0603 Metric)
