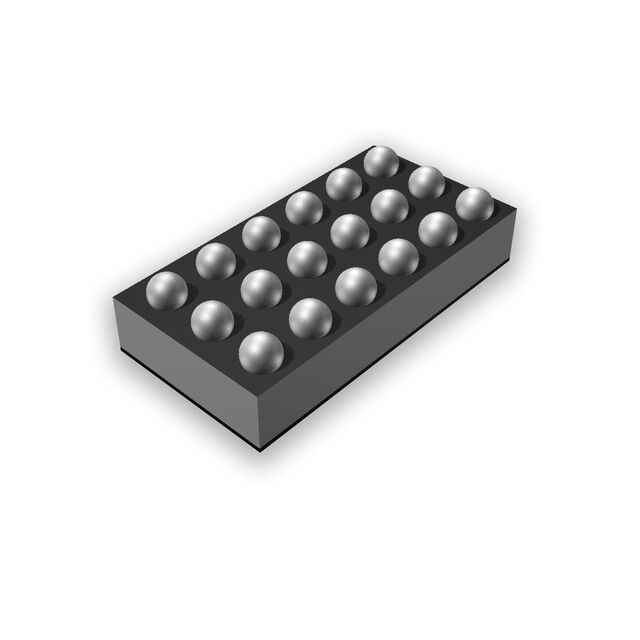

KTZ8850EUC-TR
ActiveKinetic Technologies
HIGH EFFICIENCY STEP-UP LED DRIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KTZ8850EUC-TR
ActiveKinetic Technologies
HIGH EFFICIENCY STEP-UP LED DRIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KTZ8850EUC-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel [custom] | 1.3 A |
| Dimming | PWM, I2C |
| Frequency | 1.1 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 18-BGA, WLCSP |
| Supplier Device Package | 18-WLCSP |
| Supplier Device Package [x] | 2.47 |
| Supplier Device Package [y] | 1.27 |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Output [Max] | 36 V |
| Voltage - Output [Min] | 0.2 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.75 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.75 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.51 | |||
| 1000 | $ 0.40 | |||
| Tape & Reel (TR) | 3000 | $ 0.37 | ||
| 6000 | $ 0.36 | |||
| 15000 | $ 0.34 | |||
| 30000 | $ 0.33 | |||
Description
General part information
KTZ8850EUC-TR
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) I2C, PWM Dimming 1.3A 18-WLCSP (2.47x1.27)
