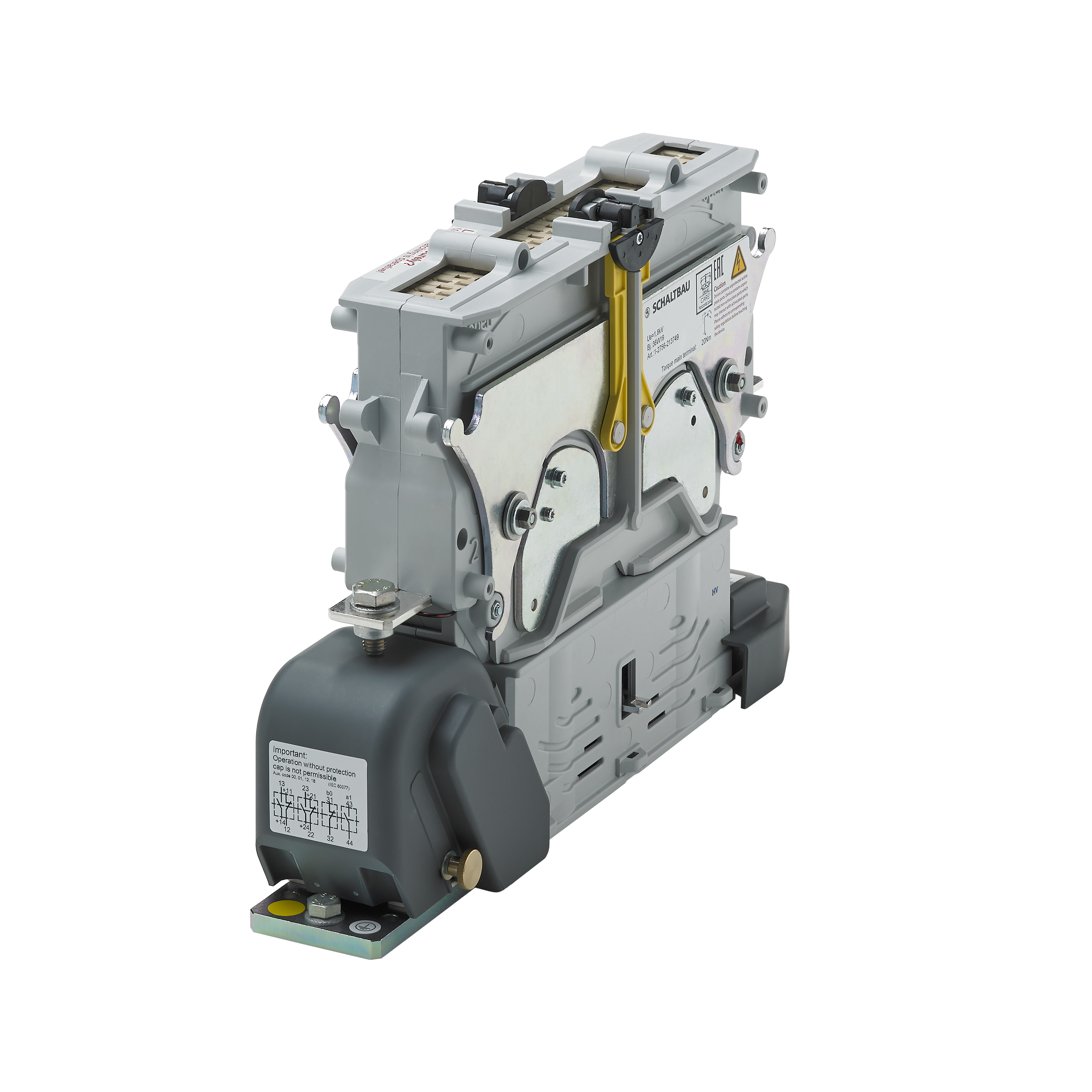

1-1756-213501
ActiveSchaltbau
CT1115/04 V 24ET-00 SCHTZ
Deep-Dive with AI
Search across all available documentation for this part.
1-1756-213501
ActiveSchaltbau
CT1115/04 V 24ET-00 SCHTZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1756-213501 |
|---|---|
| Coil Current | 1.66 A |
| Coil Power | 40 W |
| Coil Resistance | 16.4 Ohms |
| Coil Voltage [Max] | 30 VDC |
| Coil Voltage [Min] | 16.8 VDC |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 400 A |
| Features | Suppressor, Auxiliary Contacts |
| Must Operate Voltage | 12.7 VDC |
| Must Release Voltage | 1.92 VDC |
| Operate Time | 250 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 60 ms |
| Switching Voltage | 1.8 kVDC |
| Termination Style | Busbar |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 1970.93 | |
Description
General part information
1-1756-213501
CT1115/04 V 24ET-00 SCHTZ
Documents
Technical documentation and resources
No documents available
