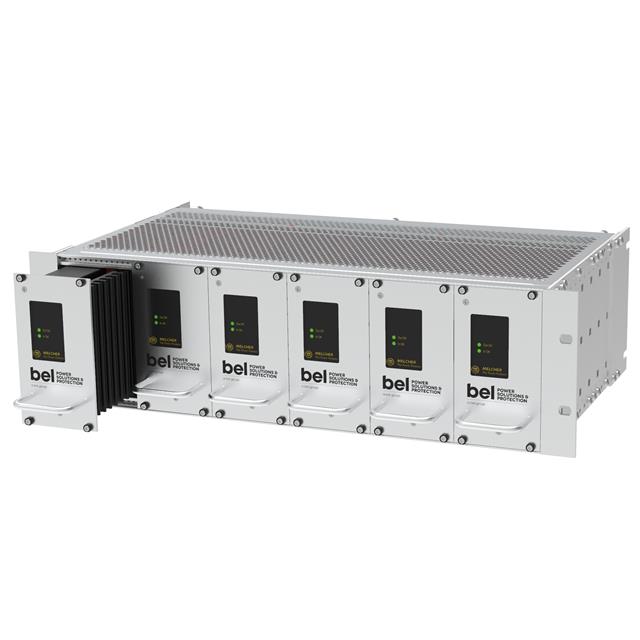

LRSA16-28-900
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 28V 448W
Deep-Dive with AI
Search across all available documentation for this part.
LRSA16-28-900
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 28V 448W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LRSA16-28-900 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cCSAus |
| Current - Output 1 | 16 A |
| Efficiency | 92 % |
| Features | PFC, Hot Swappable, Universal Input, Adjustable Output, Load Sharing, Remote On/Off |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 448 W |
| Size / Dimension [x] | 435.8 mm |
| Size / Dimension [x] | 17.16 " |
| Size / Dimension [y] | 10.35 " |
| Size / Dimension [y] | 263 mm |
| Size / Dimension [z] | 5.22 in |
| Size / Dimension [z] | 132.6 mm |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 4 | $ 3546.31 | |
Description
General part information
LRSA16-28-900
Enclosed AC DC Converters 1 Output 28V 90 ~ 264 VAC Input
