C3RWT860
ActiveHammond Manufacturing

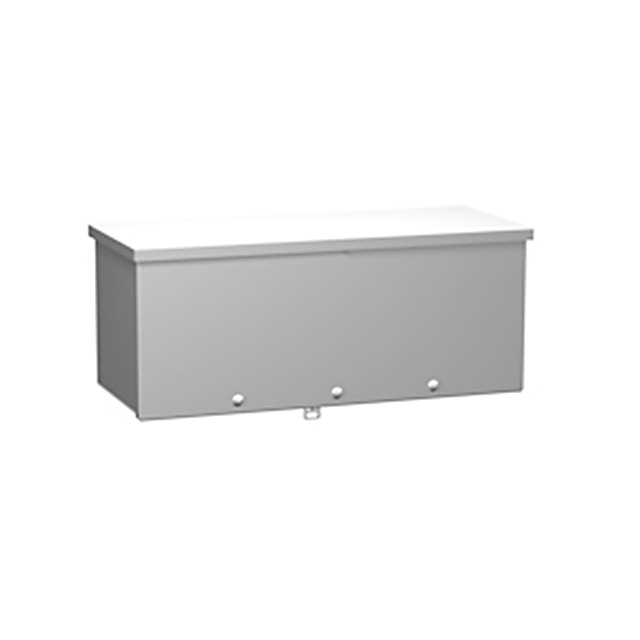

GRAY GALVANIZED STEEL TYPE 3R WIRING TROUGH
Deep-Dive with AI
Search across all available documentation for this part.
C3RWT860
ActiveHammond Manufacturing
GRAY GALVANIZED STEEL TYPE 3R WIRING TROUGH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C3RWT860 |
|---|---|
| Area (L x W) | 3097 cm² |
| Area (L x W) | 480 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Wall Mount, Lockable |
| Height [z] | 8 " |
| Height [z] | 203.2 mm |
| Material | Metal, Steel |
| Ratings | IP24, UL-870, NEMA 3R |
| Size / Dimension [x] | 60 " |
| Size / Dimension [x] | 1524 mm |
| Size / Dimension [y] | 8 in |
| Size / Dimension [y] | 203.2 mm |
| Weight | 47 lbs |
| Weight | 21.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 217.44 | |
Description
General part information
C3RWT860
Box Metal, Steel Gray Cover Included 60.000" L x 8.000" W (1524.00mm x 203.20mm) X 8.000" (203.20mm)
Documents
Technical documentation and resources
No documents available
