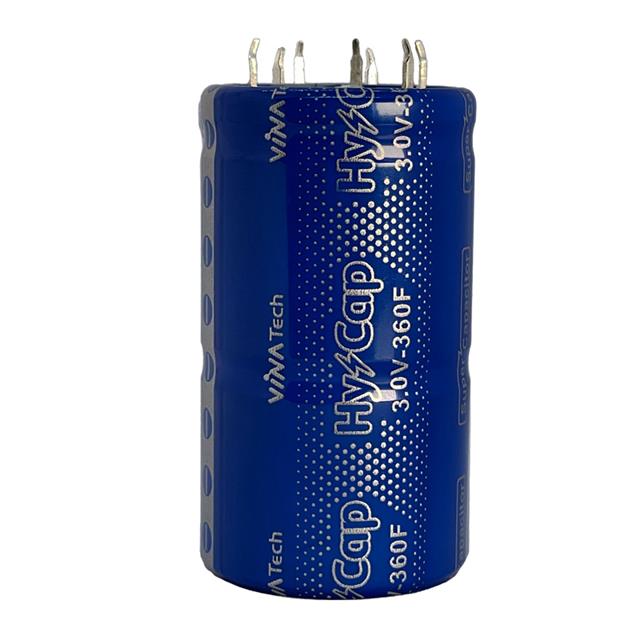

VEC3R0367QG
ActiveVINATech Co LTD
360F 3.0V 35*62 SNAPIN TYPE EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VEC3R0367QG
ActiveVINATech Co LTD
360F 3.0V 35*62 SNAPIN TYPE EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VEC3R0367QG |
|---|---|
| Capacitance | 360 F |
| ESR (Equivalent Series Resistance) | 3 mOhm |
| Height - Seated (Max) [Max] | 2.52 in |
| Height - Seated (Max) [Max] | 64 mm |
| Lead Spacing | 0.906 in |
| Lead Spacing | 23 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.12 | |
| 10 | $ 8.61 | |||
| 50 | $ 7.18 | |||
| 100 | $ 6.73 | |||
| 500 | $ 5.97 | |||
| 1000 | $ 5.73 | |||
Description
General part information
VEC3R0367QG
360 F (EDLC) Supercapacitor 3 V Radial, Can - Snap-In - 4 Lead 3mOhm @ 1kHz 1000 Hrs @ 65°C
