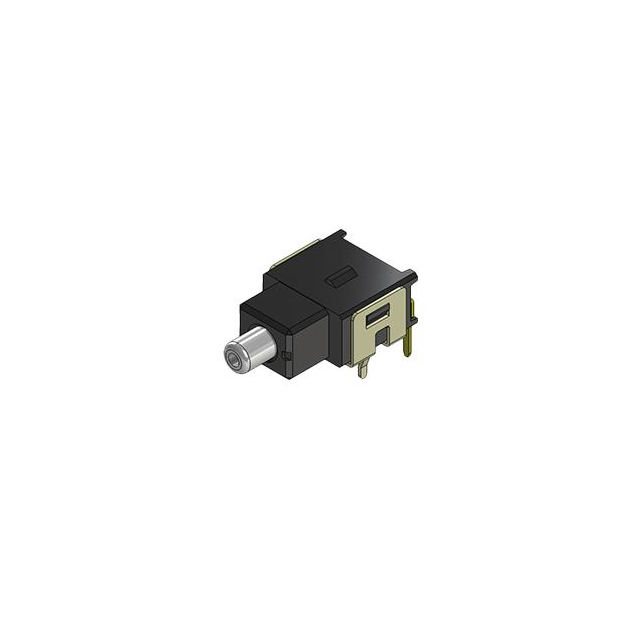

MPB02-1C54-R-CAP-R-D
ActiveCUI Devices
SPST, THROUGH HOLE, 5.4 MM PUSH,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPB02-1C54-R-CAP-R-D
ActiveCUI Devices
SPST, THROUGH HOLE, 5.4 MM PUSH,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPB02-1C54-R-CAP-R-D |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 14 mA |
| Electrical Life | 20000 Steps |
| Mechanical Life | 20000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.89 | |
| 10 | $ 2.58 | |||
| 25 | $ 2.45 | |||
| 50 | $ 2.36 | |||
| 100 | $ 2.24 | |||
| 300 | $ 2.17 | |||
Description
General part information
MPB02-1C54-R-CAP-R-D
Pushbutton Switch SPDT Standard Through Hole, Right Angle
