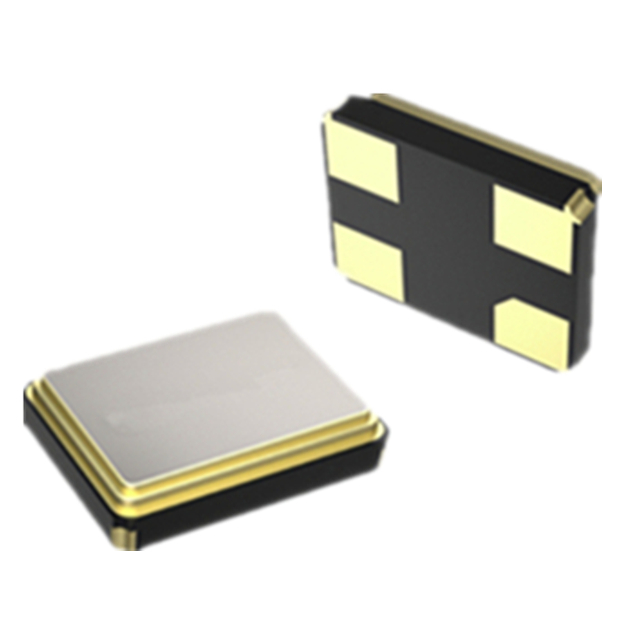

XB27M00000S420
ActiveTGS
CRYSTAL 27MHZ 30PPM, 20PF 4 PADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XB27M00000S420
ActiveTGS
CRYSTAL 27MHZ 30PPM, 20PF 4 PADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XB27M00000S420 |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 27 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.69 | |
Description
General part information
XB27M00000S420
27 MHz ±30ppm Crystal 20pF 30 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
