5442594
ActivePhoenix Contact

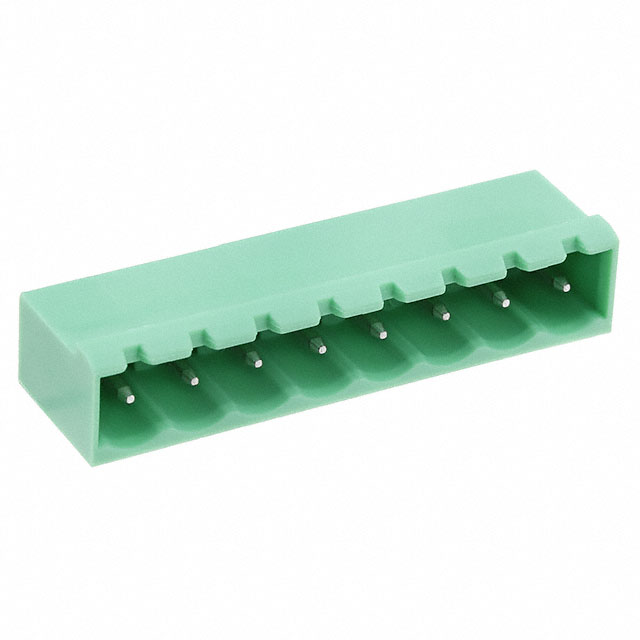

TERM BLOCK HDR 8POS 90DEG 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5442594
ActivePhoenix Contact
TERM BLOCK HDR 8POS 90DEG 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5442594 |
|---|---|
| Color | Green |
| Contact Tail Length | 3.5 mm |
| Contact Tail Length | 0.138 in |
| Current - IEC | 12 A |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 8.61 mm |
| Insulation Height | 0.339 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 8 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.17 | |
| 10 | $ 1.12 | |||
| 50 | $ 1.09 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.94 | |||
| 500 | $ 0.92 | |||
Description
General part information
5442594
8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
