IRGP4790D-EPBF
ObsoleteInfineon Technologies
IGBT 650V 140A TO247AD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IRGP4790D-EPBF
ObsoleteInfineon Technologies
IGBT 650V 140A TO247AD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IRGP4790D-EPBF |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 140 A |
| Current - Collector Pulsed (Icm) | 225 A |
| Gate Charge | 210 nC |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |

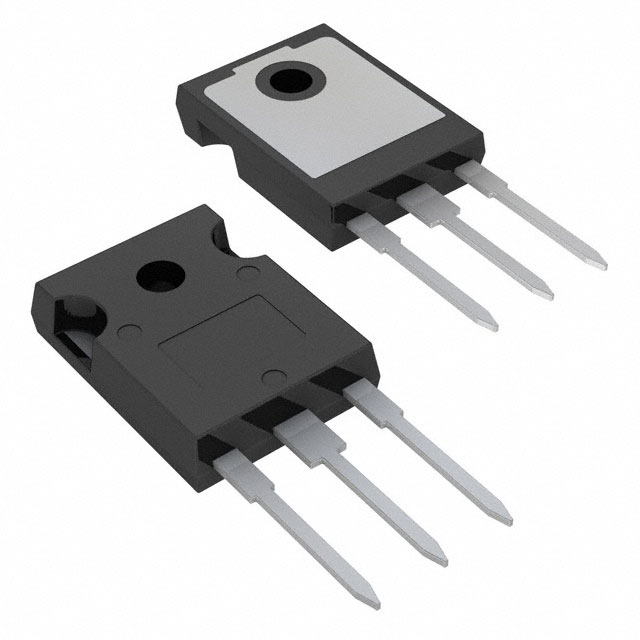

| Package / Case | TO-247-3 |
| Power - Max [Max] | 455 W |
| Reverse Recovery Time (trr) | 170 ns |
| Supplier Device Package | TO-247AD |
| Switching Energy | 2500 µJ, 2.2 mJ |
| Test Condition | 75 A, 15 V, 10 Ohm, 400 V |
| Vce(on) (Max) @ Vge, Ic | 2 V |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IRGP4790D-EPBF
IGBT 650 V 140 A 455 W Through Hole TO-247AD
