CBG-IPX-SALMGT-12IN
ActiveLighthorse Technologies, Inc

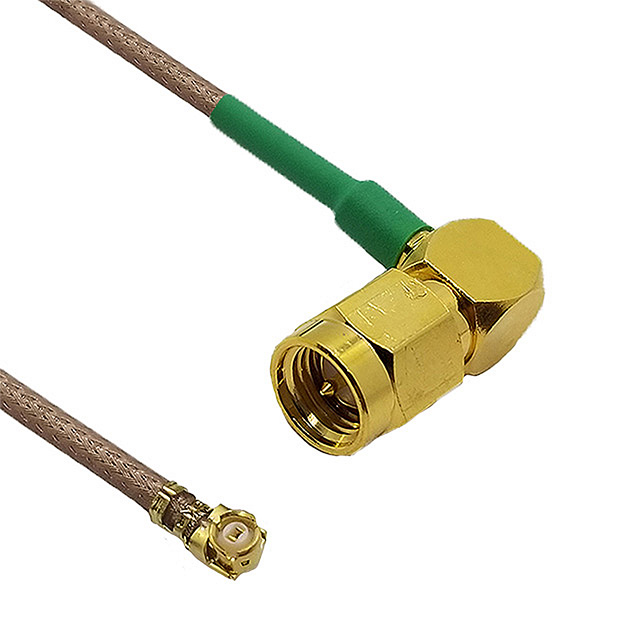

CBL ASSY IPEX MHF1-SMA P-P 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CBG-IPX-SALMGT-12IN
ActiveLighthorse Technologies, Inc
CBL ASSY IPEX MHF1-SMA P-P 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CBG-IPX-SALMGT-12IN |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | U.FL (UMCC), IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 10 in |
| Length | 254 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.59 | |
| 10 | $ 12.79 | |||
| 25 | $ 12.08 | |||
| 50 | $ 11.44 | |||
| 100 | $ 10.87 | |||
| 250 | $ 9.88 | |||
| 500 | $ 9.06 | |||
| 1000 | $ 8.36 | |||
Description
General part information
CBG-IPX-SALMGT-12IN
Cable Assembly Coaxial IPEX MHF1 to SMA RG-178 10.000" (254.00mm)
