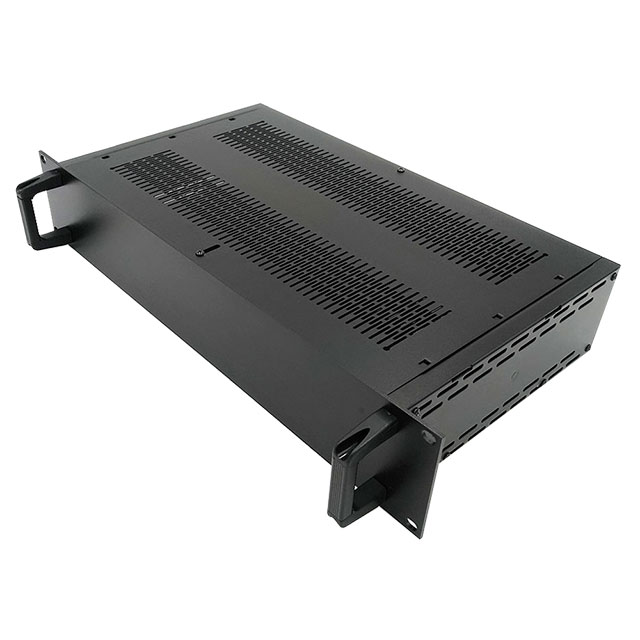

PF-19AL2UD1
ActiveCheval
CHASSIS AL 19" 425X245X83.1 MM.
Deep-Dive with AI
Search across all available documentation for this part.
PF-19AL2UD1
ActiveCheval
CHASSIS AL 19" 425X245X83.1 MM.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF-19AL2UD1 |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 16.732 in |
| Dimensions - Overall [x] | 425 mm |
| Dimensions - Overall [y] | 9.646 " |
| Dimensions - Overall [y] | 245 mm |
| Dimensions - Overall [z] | 3.272 in |
| Dimensions - Overall [z] | 83.1 mm |
| Dimensions - Panel [x] | 19 in |
| Dimensions - Panel [x] | 482.6 mm |
| Dimensions - Panel [y] | 3.469 in |
| Dimensions - Panel [y] | 88.1 mm |
| Dimensions - Panel [z] | 3 mm |
| Dimensions - Panel [z] | 0.118 in |
| Door | Aluminum |
| Material | Metal, Aluminum |
| Mounting Rails | Two Pair |
| Style | Top, Bottom, Enclosed, Sides |
| Type | Cabinet Rack |
| Ventilation | Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 51.74 | |
Description
General part information
PF-19AL2UD1
Metal, Aluminum Cabinet Rack Enclosed, Bottom, Sides, Top 16.732" L x 9.646" W x 3.272" H (425.00mm x 245.00mm x 83.10mm) Black
Documents
Technical documentation and resources
No documents available
