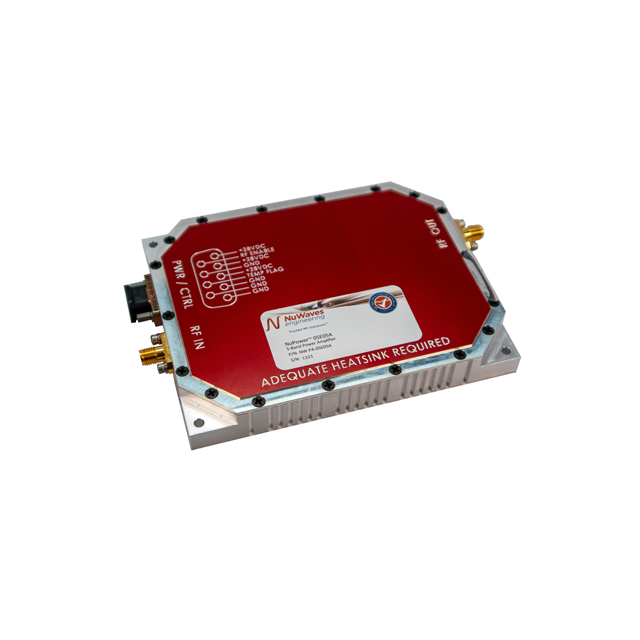

NW-PA-05E05A
ActiveNuWaves RF Solutions
IC RF AMP GPS 2GHZ-2.6GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NW-PA-05E05A
ActiveNuWaves RF Solutions
IC RF AMP GPS 2GHZ-2.6GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NW-PA-05E05A |
|---|---|
| Current - Supply | 2.4 A |
| Frequency [Max] | 2.6 GHz |
| Frequency [Min] | 2 GHz |
| Gain | 49 dB |
| P1dB | 31 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4489.00 | |
Description
General part information
NW-PA-05E05A
RF Amplifier IC General Purpose 2GHz ~ 2.6GHz
