H6-0200-0236-05-A-Y-A-F-A-X
ActivePhoenix America

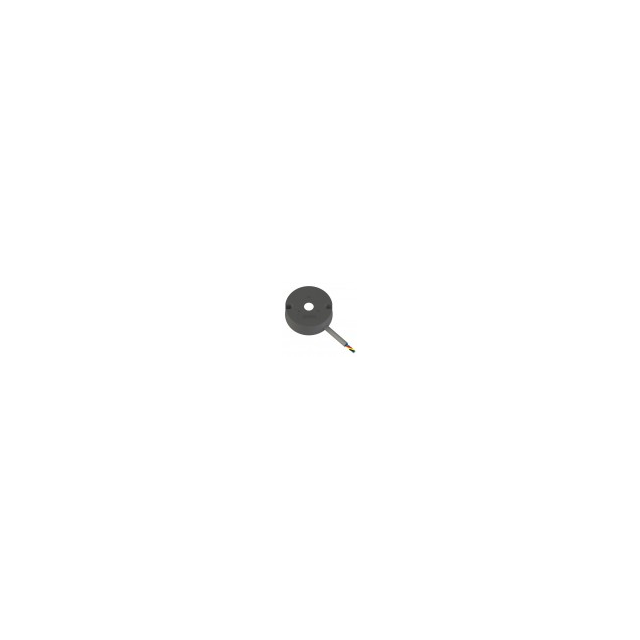

NON-UNIVERSAL HUB ENCODER KIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H6-0200-0236-05-A-Y-A-F-A-X |
|---|---|
| Actuator Type | Open Center |
| Actuator Type | 6 mm |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 200 |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.94 | |
| 5 | $ 33.95 | |||
| 10 | $ 31.87 | |||
| 25 | $ 29.21 | |||
| 50 | $ 27.31 | |||
| 100 | $ 25.61 | |||
| 250 | $ 24.66 | |||
Description
General part information
H6-0200-0236-05-A-Y-A-F-A-X
NON-UNIVERSAL HUB ENCODER KIT
