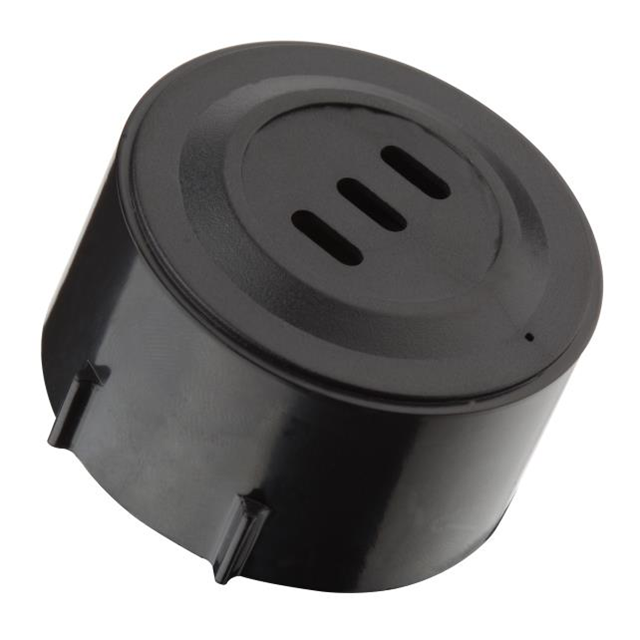

EFM-282
ActiveEast Electronics
BUZZER 12V 50MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-282
ActiveEast Electronics
BUZZER 12V 50MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-282 |
|---|---|
| Current - Supply | 75 mA |
| Frequency | 2.5 kHz |
| Height - Seated (Max) [Max] [z] | 28.8 mm |
| Height - Seated (Max) [Max] [z] | 1.134 " |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 1.969 in |
| Size / Dimension [diameter] | 50 mm |
| Sound Pressure Level (SPL) | 108 dB |
| Termination | PC Pins |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13 VDC |
| Voltage Range [Min] | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.88 | |
| 100 | $ 3.22 | |||
| 1000 | $ 2.64 | |||
Description
General part information
EFM-282
Buzzers 12 V 75mA 2.5kHz 108dB @ 12V, 30cm Through Hole PC Pins
