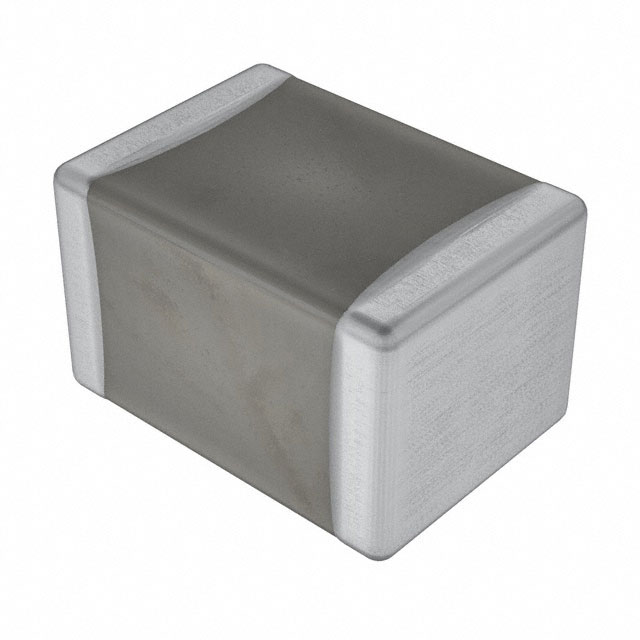

KVF500L225M43NHT00
ActiveChemi-Con
CAP CERAMIC 2.2UF 50V X8L 20% PAD SMD 1812 150°C T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KVF500L225M43NHT00
ActiveChemi-Con
CAP CERAMIC 2.2UF 50V X8L 20% PAD SMD 1812 150°C T/R AUTOMOTIVE AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KVF500L225M43NHT00 |
|---|---|
| Applications | Automotive |
| Capacitance | 2.2 µF |
| Features | High Temperature |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 4.57 mm |
| Size / Dimension [x] | 0.18 " |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Temperature Coefficient | X8L |
| Thickness (Max) [Max] | 2.8 mm |
| Thickness (Max) [Max] | 0.11 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.39 | |
| 10 | $ 1.04 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 1.04 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.78 | |||
| Tape & Reel (TR) | 800 | $ 0.45 | ||
Description
General part information
KVF500L225M43NHT00
2.2 µF ±20% 50V Ceramic Capacitor X8L 1812 (4532 Metric)
