P123
ActiveVoltaic Systems

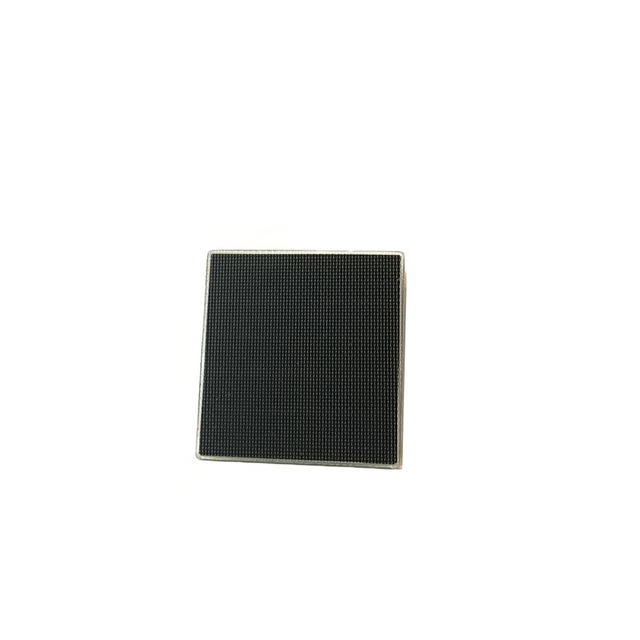

0.6W 6V SOLAR PANEL ETFE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P123
ActiveVoltaic Systems
0.6W 6V SOLAR PANEL ETFE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P123 |
|---|---|
| Current - Short Circuit (Isc) | 120 mA |
| Current @ Pmpp | 110 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 640 mW |
| Size / Dimension [x] | 66 mm |
| Size / Dimension [x] | 2.598 in |
| Size / Dimension [y] | 66 mm |
| Size / Dimension [y] | 2.598 in |
| Size / Dimension [z] | 2.9 mm |
| Size / Dimension [z] | 0.114 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 7.09 V |
| Voltage @ Pmpp | 6.07 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.00 | |
| 10 | $ 8.33 | |||
| 50 | $ 8.10 | |||
| 100 | $ 7.92 | |||
| 250 | $ 7.65 | |||
| 500 | $ 7.43 | |||
Description
General part information
P123
Monocrystalline Solar Cell 640 mW 7.09 V
