CF881-10-25
ActiveIgus

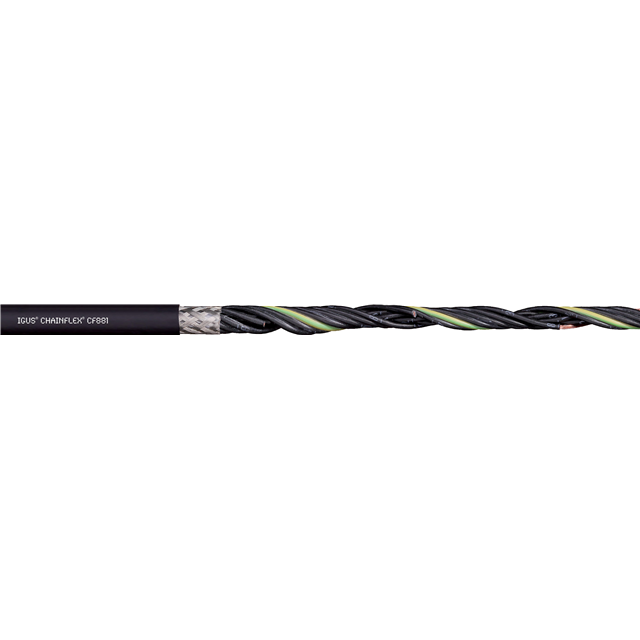

CABLE 25COND 17AWG BLK SHD 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF881-10-25
ActiveIgus
CABLE 25COND 17AWG BLK SHD 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF881-10-25 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.63 in |
| Jacket (Insulation) Diameter [diameter] | 16 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 25 |
| Ratings | UL Style 2464 |
| Shield Coverage | 60 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Voltage | 300 V |
| Wire Gauge | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.72 | |
| 100 | $ 7.41 | |||
| 500 | $ 7.13 | |||
| 1000 | $ 6.23 | |||
Description
General part information
CF881-10-25
25 Conductor Multi-Conductor Cable Black 17 AWG Braid Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
