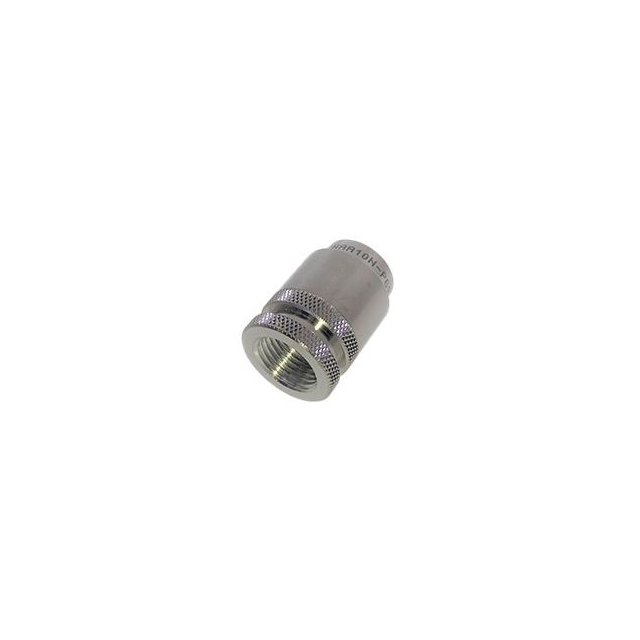

IP-UNAA14N-PG13.5
ActiveSure-Seal
CONN BCKSH ADPT SZ12-14S PG13.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IP-UNAA14N-PG13.5
ActiveSure-Seal
CONN BCKSH ADPT SZ12-14S PG13.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IP-UNAA14N-PG13.5 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [diameter] | 15.7 mm |
| Cable Opening [diameter] | 0.618 in |
| Color | Silver |
| Diameter - Outside [diameter] | 0.99 in |
| Diameter - Outside [diameter] | 25.15 mm |
| For Use With/Related Products | MIL-DTL-5015 Series, MIL-DTL-26482 Series II |
| Includes | 1 O-Ring, 1 Backshell |
| Material | Aluminum |
| Plating | Electroless Nickel |
| Shell Size - Insert | 14, 14S, 12 |
| Shielding | Unshielded |
| Thread Size | PG13.5 |
| Type | Backshell, Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 76.19 | |
| 10 | $ 50.79 | |||
| 25 | $ 41.18 | |||
| 50 | $ 36.28 | |||
| 100 | $ 31.75 | |||
Description
General part information
IP-UNAA14N-PG13.5
Silver Connector Backshell, Adapter PG13.5 12, 14, 14S
