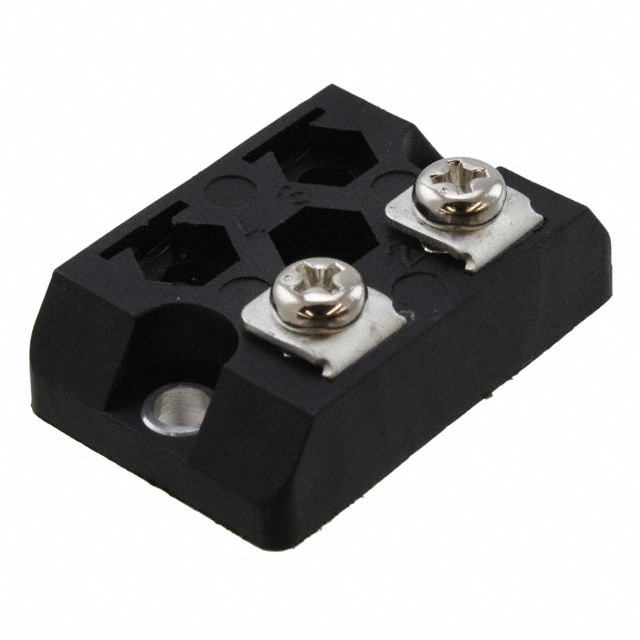

PF2272-1KJ1
ActiveRiedon products by Bourns
RES CHAS MNT 1K OHM 5% 200W
Deep-Dive with AI
Search across all available documentation for this part.
PF2272-1KJ1
ActiveRiedon products by Bourns
RES CHAS MNT 1K OHM 5% 200W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF2272-1KJ1 |
|---|---|
| Coating, Housing Type | Aluminum Oxide |
| Composition | Thick Film |
| Features | Safety, Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding |
| Height - Seated (Max) [Max] | 0.484 in |
| Height - Seated (Max) [Max] | 12.3 mm |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-227-4 |
| Power (Watts) | 200 W |
| Resistance | 1000 Ohms |
| Size / Dimension [x] | 1.496 " |
| Size / Dimension [x] | 38 mm |
| Size / Dimension [y] | 25 mm |
| Size / Dimension [y] | 0.984 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 38.71 | |
| 20 | $ 32.32 | |||
| 40 | $ 29.44 | |||
| 100 | $ 27.25 | |||
| 260 | $ 27.04 | |||
Description
General part information
PF2272-1KJ1
1 kOhms ±5% 200W Thick Film Chassis Mount Resistor
