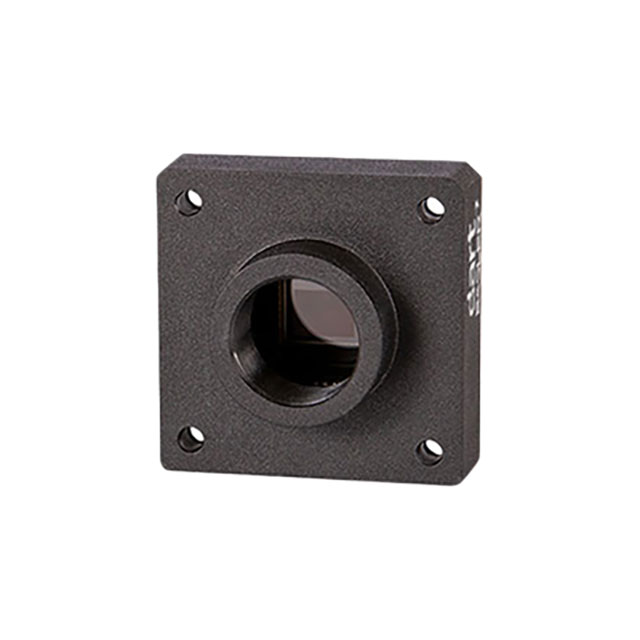

108008
ActiveBasler Inc.
2592 X 1944, 60 FPS, COLOR
Deep-Dive with AI
Search across all available documentation for this part.
108008
ActiveBasler Inc.
2592 X 1944, 60 FPS, COLOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 108008 |
|---|---|
| Color | RGB |
| Frames per Second | 60 |
| Interface | MIPI |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 2.2 µm |
| Pixel Size [y] | 2.2 µm |
| Resolution [x] | 2592 |
| Resolution [y] | 1944 |
| Sensor | MT9P031 |
| Shutter | Rolling |
| Size / Dimension [x] | 27 mm |
| Size / Dimension [x] | 1.063 in |
| Size / Dimension [y] | 1.063 in |
| Size / Dimension [y] | 27 mm |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 75.00 | |
Description
General part information
108008
2592 X 1944, 60 FPS, COLOR
Documents
Technical documentation and resources
No documents available
