4282-3-22-D
ActiveCnC Tech, LLC

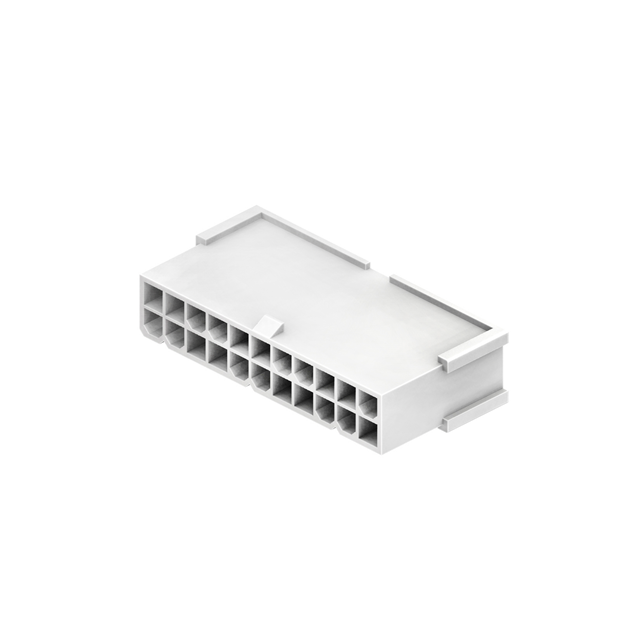

CONN PLUG HSG 22POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4282-3-22-D
ActiveCnC Tech, LLC
CONN PLUG HSG 22POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4282-3-22-D |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 22 positions |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.55 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
Description
General part information
4282-3-22-D
22 Rectangular Connectors - Housings Plug White 0.165" (4.20mm)
