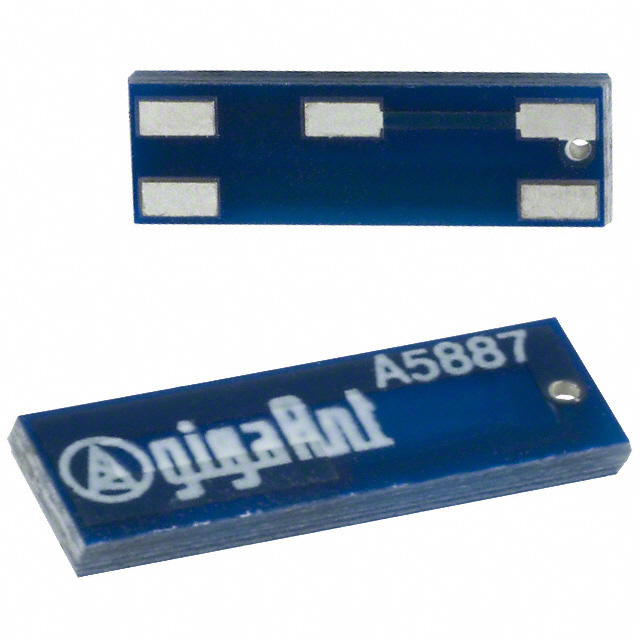

A5887
ObsoleteAntenova
RF ANT 2.4GHZ PCB TRACE SLDR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A5887
ObsoleteAntenova
RF ANT 2.4GHZ PCB TRACE SLDR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A5887 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.1 dBi |
| Height (Max) [Max] | 0.043 in |
| Height (Max) [Max] | 1.1 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -11 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A5887
RF ANTENNA Bluetooth, WLAN, Zigbee™ PCB Trace Solder Surface Mount
