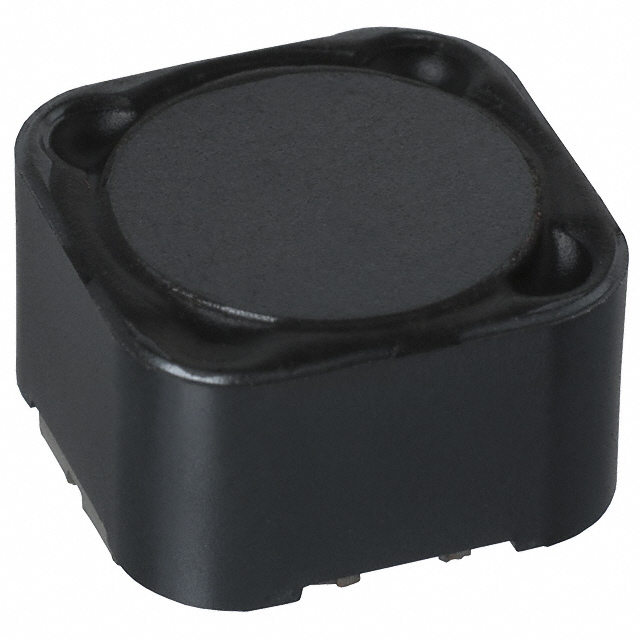

CDRH127NP-680MC
ActiveSumida America Components Inc.
FIXED IND 68UH 2.1A 140 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDRH127NP-680MC
ActiveSumida America Components Inc.
FIXED IND 68UH 2.1A 140 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH127NP-680MC |
|---|---|
| Current Rating (Amps) | 2.1 A |
| DC Resistance (DCR) | 140 mOhm |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Inductance | 68 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.81 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.02 | |||
| Digi-Reel® | 1 | $ 1.81 | ||
| 10 | $ 1.53 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.02 | |||
| Tape & Reel (TR) | 500 | $ 0.96 | ||
| 1000 | $ 0.90 | |||
| 2500 | $ 0.87 | |||
| 5000 | $ 0.84 | |||
Description
General part information
CDRH127NP-680MC
68 µH Shielded Inductor 2.1 A 140mOhm Max Nonstandard
