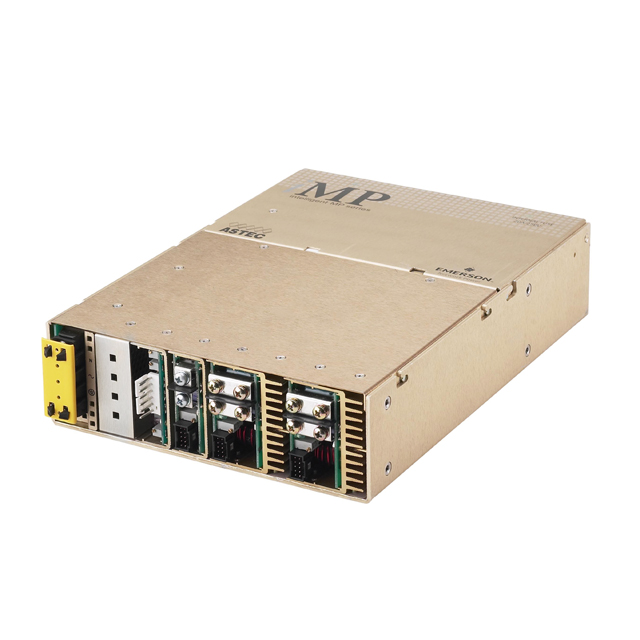

IMP8-2D0-2E0-1Q-4LL0-00-A
ObsoleteARTESYN / Advanced Energy
AC/DC CNVT 3.3V 5V 2X12V 1200W
Deep-Dive with AI
Search across all available documentation for this part.
IMP8-2D0-2E0-1Q-4LL0-00-A
ObsoleteARTESYN / Advanced Energy
AC/DC CNVT 3.3V 5V 2X12V 1200W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMP8-2D0-2E0-1Q-4LL0-00-A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CSA, UL, CE |
| Current - Output 1 | 60 A |
| Current - Output 2 | 60 A |
| Current - Output 3 | 8.5 A |
| Current - Output 4 | 10 A |
| Current - Output 5 | 4 A |
| Efficiency | 85 % |
| Features | PMBus™, Universal Input, Adjustable Output, I2C Interface, PFC, Remote Sense |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Power (Watts) | 1200 W |
| Size / Dimension [x] | 254 mm |
| Size / Dimension [x] | 254 mm |
| Size / Dimension [y] | 177.8 mm |
| Size / Dimension [y] | 7 " |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 63.5 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 300 VDC, 264 VAC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IMP8-2D0-2E0-1Q-4LL0-00-A
Enclosed AC DC Converters 5 Output 3.3V 5V 12V 12V 85 ~ 264 VAC, 120 ~ 300 VDC Input
