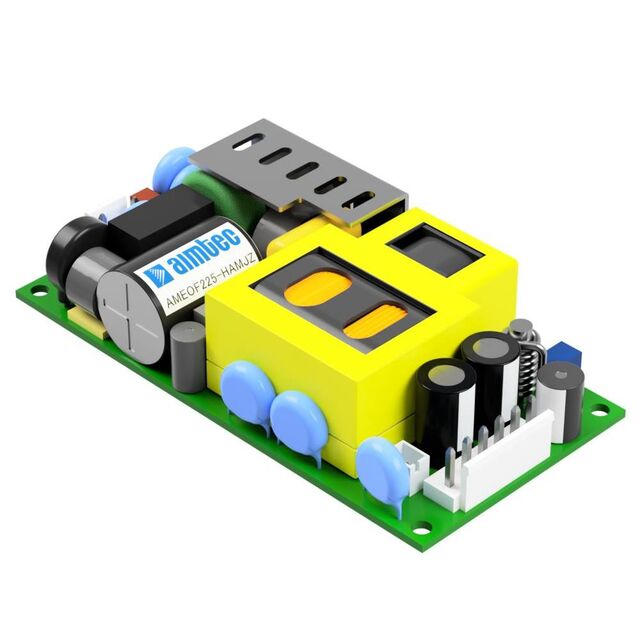

AMEOF225-24SHAMJZ-F
Obsoleteaimtec
AC/DC CONVERTER 24V 140W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEOF225-24SHAMJZ-F
Obsoleteaimtec
AC/DC CONVERTER 24V 140W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEOF225-24SHAMJZ-F |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Current - Output 1 | 9.4 A |
| Efficiency | 94 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 226 W |
| Power (Watts) | 140 W |
| Size / Dimension [x] | 4.07 in |
| Size / Dimension [x] | 103.4 mm |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 in |
| Size / Dimension [z] | 37.1 mm |
| Size / Dimension [z] | 1.46 in |
| Standard Number | 60335-1, 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 52.83 | |
Description
General part information
AMEOF225-24SHAMJZ-F
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
