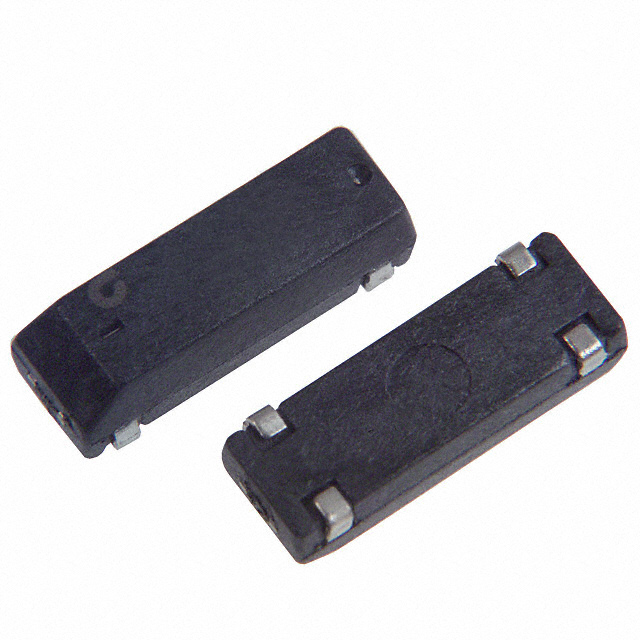

CM309S24.000MABJT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 24.0000MHZ 18PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM309S24.000MABJT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 24.0000MHZ 18PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM309S24.000MABJT |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 24 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 9.4 mm |
| Package / Case | 4-SOJ |
| Size / Dimension [x] | 0.488 in |
| Size / Dimension [x] | 12.4 mm |
| Size / Dimension [y] | 0.173 in |
| Size / Dimension [y] | 4.4 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CM309S24.000MABJT
24 MHz ±30ppm Crystal 18pF 50 Ohms 4-SOJ, 9.40mm pitch
