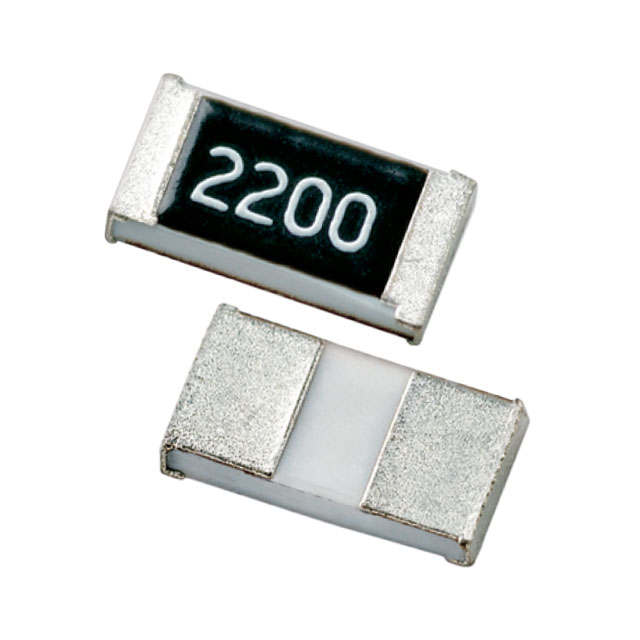

HRG3216P-9761-B-T1
ActiveSusumu
1W THIN FILM RESISTOR ±25PPM/℃ ±0.1% 9.76KΩ 1206 CHIP RESISTOR - SURFACE MOUNT ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HRG3216P-9761-B-T1
ActiveSusumu
1W THIN FILM RESISTOR ±25PPM/℃ ±0.1% 9.76KΩ 1206 CHIP RESISTOR - SURFACE MOUNT ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRG3216P-9761-B-T1 |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 9.76 kOhms |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.065 in |
| Size / Dimension [y] | 1.65 mm |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HRG3216P-9761-B-T1
9.76 kOhms ±0.1% 1W Chip Resistor 1206 (3216 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
