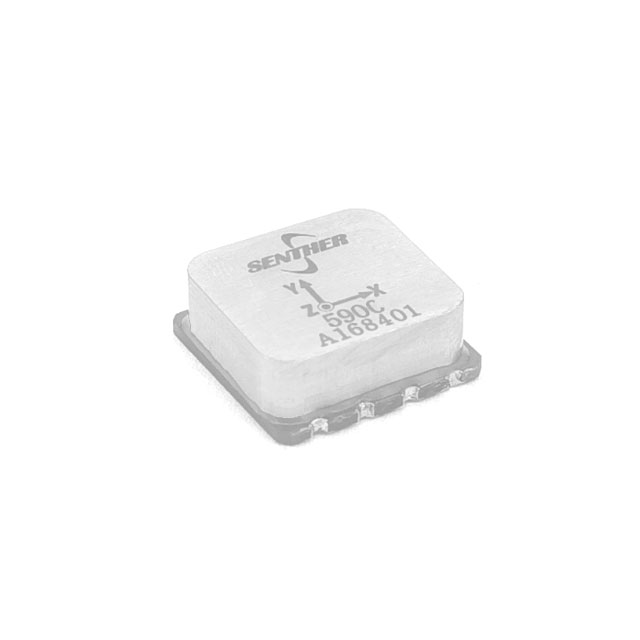

590C-50
ActiveSenther Technology
EMBEDDED TRI-AXIAL ACCELEROMETER
Deep-Dive with AI
Search across all available documentation for this part.
590C-50
ActiveSenther Technology
EMBEDDED TRI-AXIAL ACCELEROMETER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 590C-50 |
|---|---|
| Acceleration Range [Max] | 50 g |
| Acceleration Range [Min] | -50 g |
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Bandwidth [Max] | 15 kHz |
| Bandwidth [Min] | 1 Hz |
| Features | Adjustable Bandwidth |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | 8-SMD, Exposed Pad, No Lead |
| Sensitivity (mV/g) | 4 mV/g |
| Supplier Device Package | 8-SMD |
| Type | Analog |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.31 | |
| 5 | $ 74.42 | |||
| 10 | $ 72.22 | |||
| 25 | $ 69.60 | |||
| 50 | $ 67.80 | |||
| 100 | $ 66.15 | |||
Description
General part information
590C-50
Accelerometer X, Y, Z Axis ±50g 1Hz ~ 15kHz 8-SMD
Documents
Technical documentation and resources
No documents available
