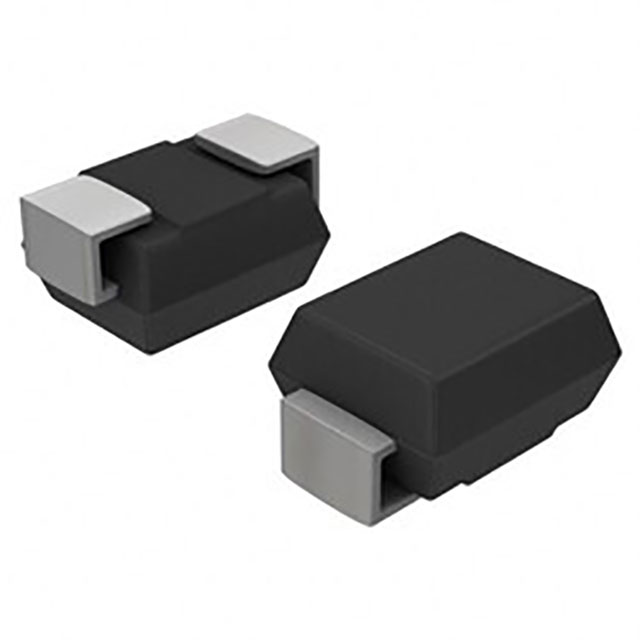

FM4007-S-H
ActiveFormosa Microsemi Co., Ltd.
DIODE GEN PURP 1KV 1A SMA-S
Deep-Dive with AI
Search across all available documentation for this part.
FM4007-S-H
ActiveFormosa Microsemi Co., Ltd.
DIODE GEN PURP 1KV 1A SMA-S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FM4007-S-H |
|---|---|
| Capacitance @ Vr, F | 5 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-214AC, SMA Flat Leads |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | SMA-S |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.17 | |
| 50 | $ 0.13 | |||
| 100 | $ 0.10 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
Description
General part information
FM4007-S-H
Diode 1000 V 1A Surface Mount SMA-S
Documents
Technical documentation and resources
No documents available
