30-01955
ActiveTensility International Corp
CABLE 8COND 32AWG BLACK 502'
Deep-Dive with AI
Search across all available documentation for this part.
30-01955
ActiveTensility International Corp
CABLE 8COND 32AWG BLACK 502'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-01955 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 40 AWG |
| Jacket (Insulation) Diameter [diameter] | 3.2 mm |
| Jacket (Insulation) Diameter [diameter] | 0.126 in |
| Jacket (Insulation) Material | Thermoplastic Elastomer (TPE) |
| Jacket (Insulation) Thickness | 0.0236 in |
| Jacket (Insulation) Thickness | 0.6 mm |
| Jacket Color | Black |
| Length | 502 ft, 98.43 ft |
| Length | 153 m, 30 m |
| Length [x] | 1 m |
| Length [x] | 3.28 ft |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style 21296 |
| Voltage | 300 V |
| Wire Gauge | 32 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.70 | |
| 1 | $ 27.50 | |||
| 1 | $ 163.07 | |||
| 5 | $ 133.42 | |||
| 5 | $ 4.66 | |||
| 5 | $ 22.50 | |||
| 10 | $ 3.63 | |||
| 10 | $ 17.50 | |||
| 10 | $ 103.77 | |||
| Spool | 1 | $ 345.33 | ||
| 3 | $ 325.13 | |||
Description
General part information
30-01955

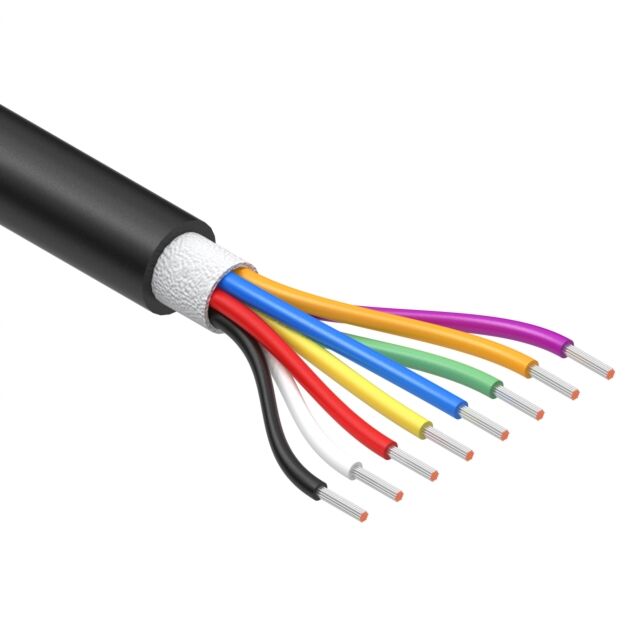

8 Conductor Multi-Conductor Cable Black 32 AWG 502.0' (153.0m)
Documents
Technical documentation and resources
No documents available
