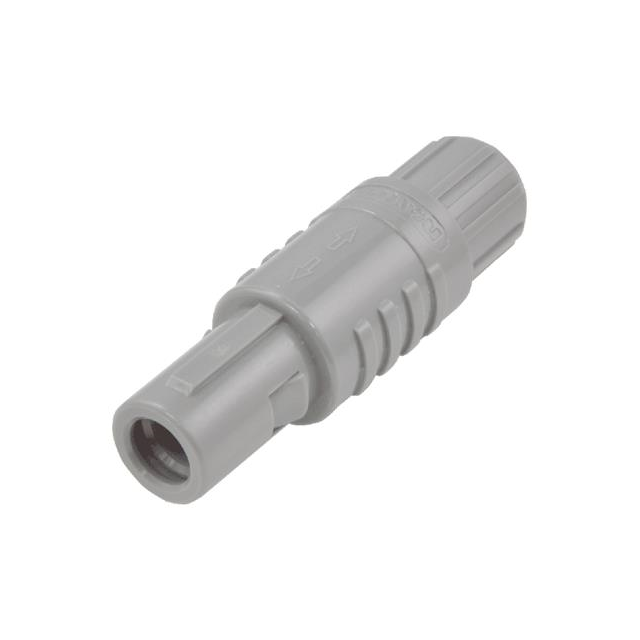

RMA1G8P4230140
ActiveNextron
1P, STRAIGHT PLUG, 14PIN, IP50
Deep-Dive with AI
Search across all available documentation for this part.
RMA1G8P4230140
ActiveNextron
1P, STRAIGHT PLUG, 14PIN, IP50
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RMA1G8P4230140 |
|---|---|
| Backshell Material, Plating | Polysulfone (PSU) |
| Cable Opening [custom] | 0.209 in, 0.256 in |
| Cable Opening [custom] | 6.5 mm, 5.3 mm |
| Color | Gray |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 ° |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.49 | |
| 4 | $ 6.48 | |||
| 20 | $ 6.07 | |||
| 40 | $ 5.71 | |||
Description
General part information
RMA1G8P4230140
14 Position Circular Connector Plug, Male Pins Solder Cup
