SM100B
ActiveSimplex Motion AB
INTEGRATED SERVOMOTOR 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM100B
ActiveSimplex Motion AB
INTEGRATED SERVOMOTOR 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM100B |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Encoder Type | Incremental |
| Features | Integrated Controller |
| Function | Servomotor |
| Length - Shaft and Bearing [x] | 18 mm |
| Length - Shaft and Bearing [x] | 0.709 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 50 mm |
| Mounting Hole Spacing | 1.969 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 100 W |
| RPM | 6000 RPM |
| Size / Dimension | Rectangular |
| Size / Dimension [x] | 2.913 " |
| Size / Dimension [x] | 74 mm |
| Size / Dimension [y] | 2.52 " |
| Size / Dimension [y] | 64 mm |
| Termination Style | Connector |
| Torque - Max Momentary (oz-in / mNm) | 2000 mNm |
| Torque - Max Momentary (oz-in / mNm) | 280 oz-in |
| Torque - Rated (oz-in / mNm) | 45 oz-in |
| Torque - Rated (oz-in / mNm) | 320 mNm |
| Type | DC Motor |
| Voltage - Rated [Max] | 24 V |
| Voltage - Rated [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 545.00 | |
| 5 | $ 510.00 | |||
| 10 | $ 490.00 | |||
Description
General part information

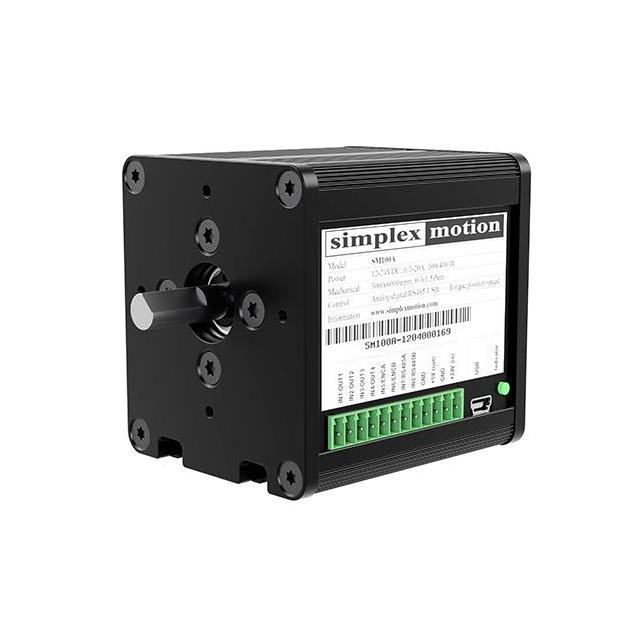

SM100B
Brushless (BLDC) DC Motor Servomotor 6000 RPM 100W Incremental 12 ~ 24VDC
