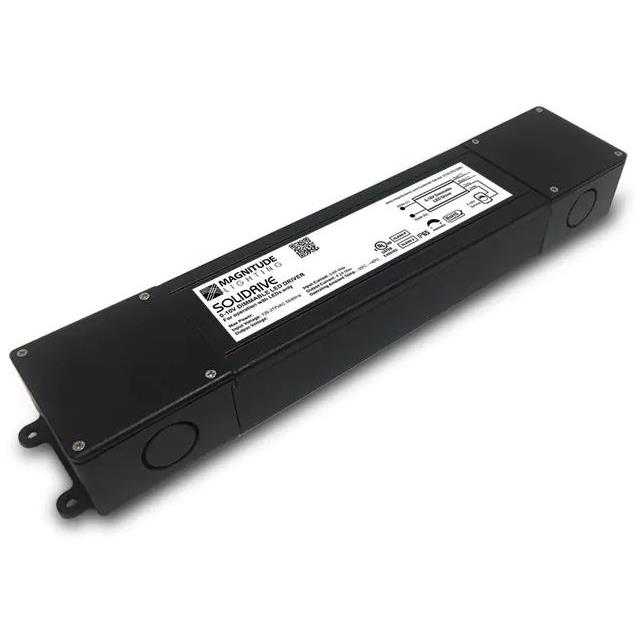

CVD96L48DC
ActiveMagnitude Lighting
SOLIDRIVE, CV, 0-10V, LISTED, 96
Deep-Dive with AI
Search across all available documentation for this part.
CVD96L48DC
ActiveMagnitude Lighting
SOLIDRIVE, CV, 0-10V, LISTED, 96
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CVD96L48DC |
|---|---|
| Approval Agency | FCC, UL |
| Current - Output (Max) [Max] | 2 A |
| Dimming [Max] [custom] | 10 V |
| Dimming [Min] [custom] | 0 V |
| Efficiency | 84 % |
| Features | SS, OVP, OTP, OCP |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 96 W |
| Ratings | IP66 |
| Size / Dimension [x] | 307.34 mm |
| Size / Dimension [x] | 12.1 " |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [y] | 59.94 mm |
| Size / Dimension [z] | 1.4 " |
| Size / Dimension [z] | 35.6 mm |
| Standard Number | 2043, 8750 |
| Standard Number | CSA C22.2 NO. 250.13-14 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 143.85 | |
| 5 | $ 137.31 | |||
| 10 | $ 130.77 | |||
Description
General part information
CVD96L48DC
2A 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
