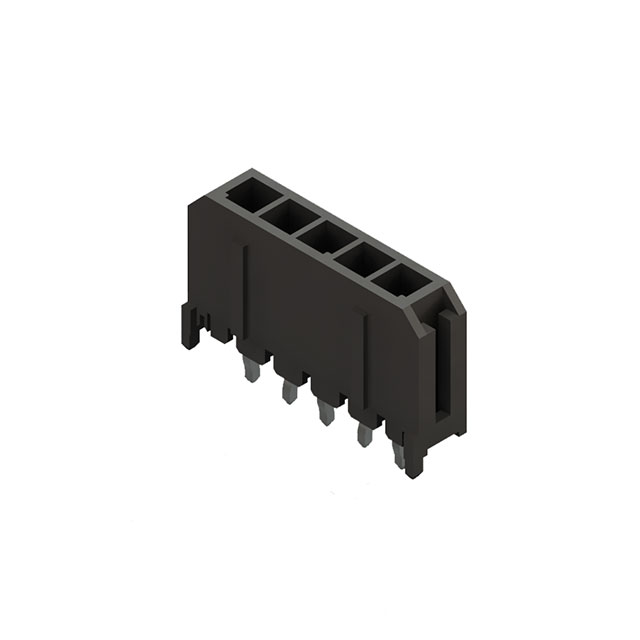

CP3503P1V00-S-NH
ActiveCvilux USA
3 POS 3.00MM(.118) SINGLE ROW ST
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP3503P1V00-S-NH
ActiveCvilux USA
3 POS 3.00MM(.118) SINGLE ROW ST
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP3503P1V00-S-NH |
|---|---|
| Connector Type | Plug |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7 A |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height [custom] | 9.86 mm |
| Insulation Height [custom] | 0.388 in |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder, Press-Fit |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.24 | |
| 10 | $ 0.18 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
Description
General part information
CP3503P1V00-S-NH
Connector Header Through Hole 3 position 0.118" (3.00mm)
