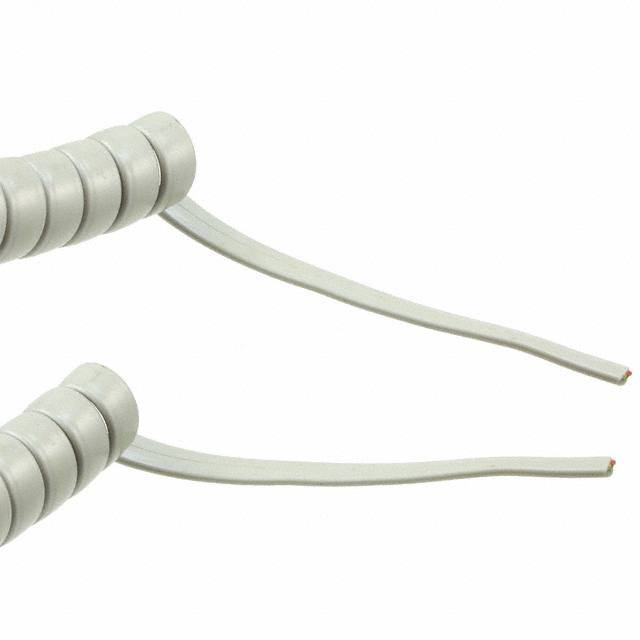

GLF-121-810-002
ObsoleteI.O. Interconnect
CABLE MOD COIL 8COND SILVER 14'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLF-121-810-002
ObsoleteI.O. Interconnect
CABLE MOD COIL 8COND SILVER 14'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF-121-810-002 |
|---|---|
| Cable Height [z] | 0.098 in |
| Cable Height [z] | 2.5 mm |
| Cable Type | Coil |
| Cable Width | 0.346 in |
| Cable Width | 8.8 mm |
| Coil Diameter [diameter] | 19 mm |
| Coil Diameter [diameter] | 0.748 in |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 0.0047 in |
| Conductor Strand [custom] | 12 |
| Jacket (Insulation) Material | Polypropylene (PP) |
| Jacket Color | Silver |
| Length - Coil Extended [x] | 14 ft |
| Length - Coil Extended [x] | 4.27 m |
| Length - Coil Retracted | 4.17 ft |
| Length - Coil Retracted | 1.27 m |
| Number of Conductors | 8 |
| Operating Temperature | 80 °C |
| Shielding | Unshielded |
| Voltage | 30 V |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.09 | |
| 5 | $ 4.00 | |||
| 10 | $ 3.96 | |||
| 25 | $ 3.91 | |||
| 50 | $ 3.88 | |||
| 100 | $ 3.84 | |||
Description
General part information
GLF-121-810-002
8 Conductor Modular Coil Cable Silver 14' (4.27m)
