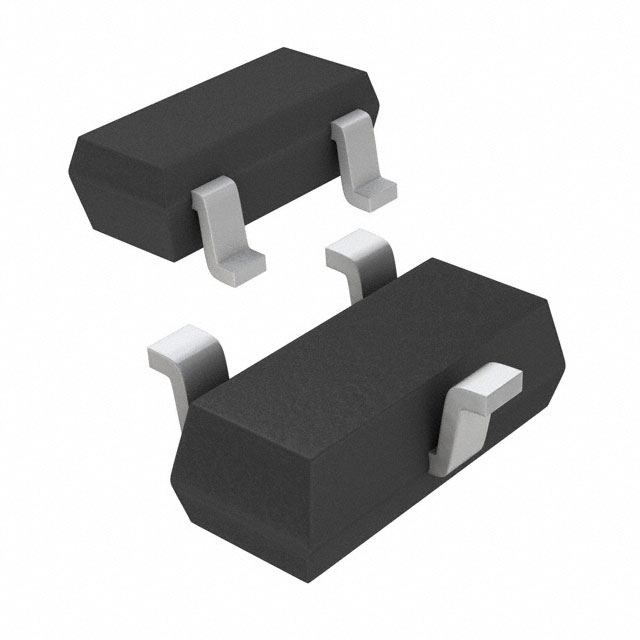

RR122-1B93-511
ObsoleteCoto Technology
MAGNETIC SWITCH OMNIPOL SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR122-1B93-511
ObsoleteCoto Technology
MAGNETIC SWITCH OMNIPOL SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RR122-1B93-511 |
|---|---|
| Current - Output (Max) [Max] | 20 mA |
| Current - Supply (Max) | 36 µA |
| Function | Omnipolar Switch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Polarization | South Pole, North Pole |
| Sensing Range | 3 mT, 2 mT |
| Supplier Device Package | SOT-23-3 |
| Technology | Magnetic, TMR (Tunneling Magnetoresistive) |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RR122-1B93-511
Digital Switch Omnipolar Switch Push-Pull Magnetic, TMR (Tunneling Magnetoresistive) SOT-23-3
Documents
Technical documentation and resources
