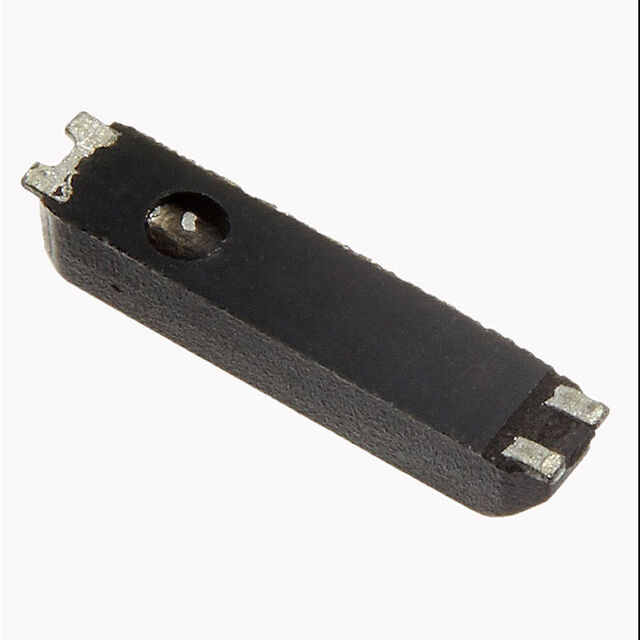

RSE-32.768-12.5-H14-TR
ActiveRaltron Electronics
CRYSTAL 32.7680KHZ 12.5PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSE-32.768-12.5-H14-TR
ActiveRaltron Electronics
CRYSTAL 32.7680KHZ 12.5PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSE-32.768-12.5-H14-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 65 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) [Max] | 1.4 mm |
| Height - Seated (Max) [Max] | 0.055 in |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, Flat Leads |
| Size / Dimension [x] | 6.7 mm |
| Size / Dimension [x] | 0.264 " |
| Size / Dimension [y] | 0.055 in |
| Size / Dimension [y] | 1.4 mm |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.39 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.39 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
| 6000 | $ 0.23 | |||
| 15000 | $ 0.22 | |||
Description
General part information
RSE-32.768-12.5-H14-TR
32.768 kHz ±50ppm Crystal 12.5pF 65 kOhms 4-SMD, Flat Leads
