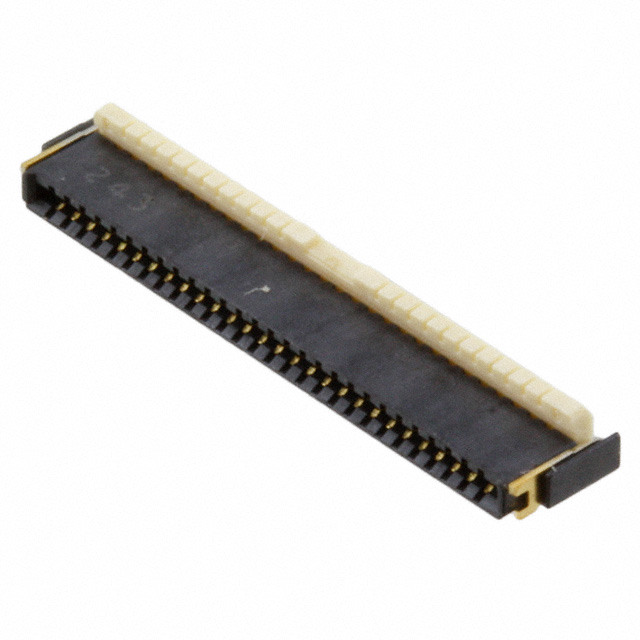

AYF532835
ActivePanasonic Electric Works
CONN FFC FPC 28POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AYF532835
ActivePanasonic Electric Works
CONN FFC FPC 28POS 0.5MM R/A
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AYF532835 |
|---|---|
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 500 mA |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 1 mm |
| Height Above Board [z] | 0.039 in |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Locking Feature | Flip Lock, Backlock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 28 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.48 | |
| 10 | $ 2.16 | |||
| 25 | $ 2.07 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.75 | |||
| Digi-Reel® | 1 | $ 2.48 | ||
| 10 | $ 2.16 | |||
| 25 | $ 2.07 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.93 | |||
| 250 | $ 1.75 | |||
| Tape & Reel (TR) | 500 | $ 1.14 | ||
Description
General part information
AYF532835
28 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
