ERZ-E07A241
ActivePanasonic Industrial Automation Sales

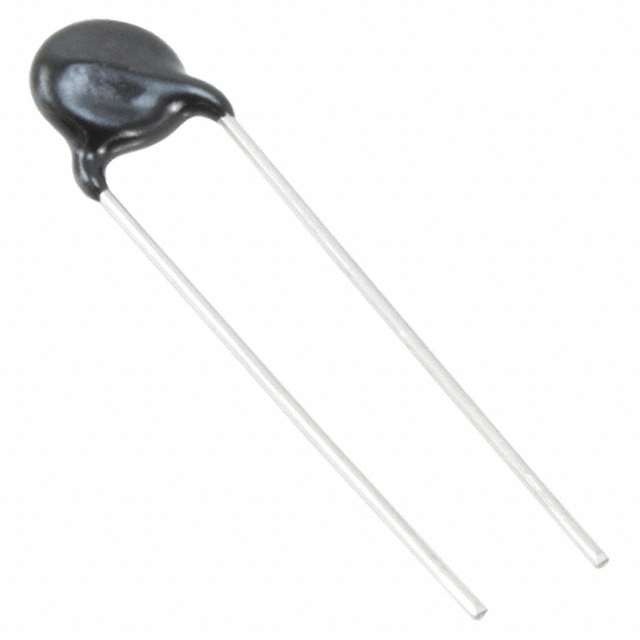

VARISTOR 240V 2.5KA DISC 9MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERZ-E07A241
ActivePanasonic Industrial Automation Sales
VARISTOR 240V 2.5KA DISC 9MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERZ-E07A241 |
|---|---|
| Capacitance @ Frequency | 350 pF |
| Current - Surge | 2.5 kA |
| Energy | 33 J |
| Maximum AC Volts [Max] | 150 V |
| Maximum DC Volts [Max] | 200 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc 9mm |
| Varistor Voltage (Max) [Max] | 264 V |
| Varistor Voltage (Min) [Min] | 216 V |
| Varistor Voltage (Typ) | 240 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.30 | |
| 10 | $ 0.23 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| 5000 | $ 0.07 | |||
Description
General part information
ERZ-E07A241
240 V 2.5 kA Varistor 1 Circuit Through Hole Disc 9mm
Documents
Technical documentation and resources
