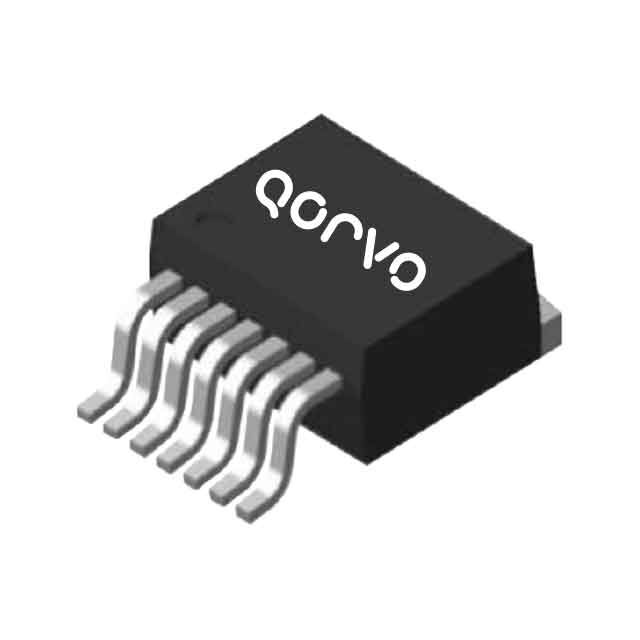

UF4SC120030B7S
ActiveQorvo
1200V/30MO,SICFET,G4,TO263-7
Deep-Dive with AI
Search across all available documentation for this part.
UF4SC120030B7S
ActiveQorvo
1200V/30MO,SICFET,G4,TO263-7
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF4SC120030B7S |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 56 A |
| Drain to Source Voltage (Vdss) | 1200 V |
| Drive Voltage (Max Rds On, Min Rds On) | 12 V, 12 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 37.8 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1450 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | D2PAK (7 Leads + Tab), TO-263-8, TO-263CA |
| Power Dissipation (Max) | 341 W |
| Rds On (Max) @ Id, Vgs | 39 mOhm |
| Supplier Device Package | D2PAK-7L |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id [Max] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 10.55 | |
Description
General part information
UF4SC120030B7S
P-Channel 1200 V 56A (Tj) 341W (Tc) Surface Mount D2PAK-7L
