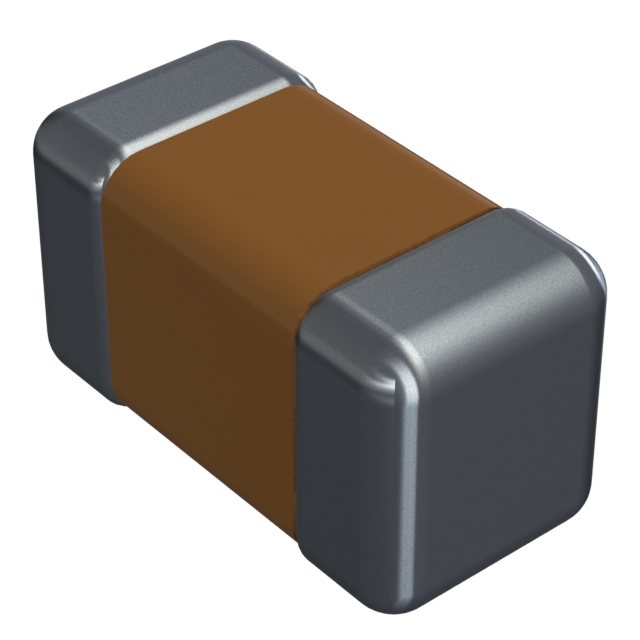

550Z103PCAT
ActiveAmerican Technical Ceramics
CAP CER 10000PF 10V 0201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
550Z103PCAT
ActiveAmerican Technical Ceramics
CAP CER 10000PF 10V 0201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 550Z103PCAT |
|---|---|
| Applications | RF, High Frequency, Bypass, Microwave, Decoupling |
| Capacitance | 10000 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Size / Dimension [x] | 0.023 " |
| Size / Dimension [x] | 0.58 mm |
| Size / Dimension [y] | 0.012 " |
| Size / Dimension [y] | 0.3 mm |
| Thickness (Max) [Max] | 0.013 in |
| Thickness (Max) [Max] | 0.33 mm |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.37 | |
| 10 | $ 6.39 | |||
| 50 | $ 5.73 | |||
| 100 | $ 4.98 | |||
| Digi-Reel® | 1 | $ 7.37 | ||
| 10 | $ 6.39 | |||
| 50 | $ 5.73 | |||
| 100 | $ 4.98 | |||
| Tape & Reel (TR) | 500 | $ 4.50 | ||
| 1000 | $ 4.18 | |||
Description
General part information
550Z103PCAT
10000 pF 0%, +100% 10V Ceramic Capacitor 0201 (0603 Metric)
