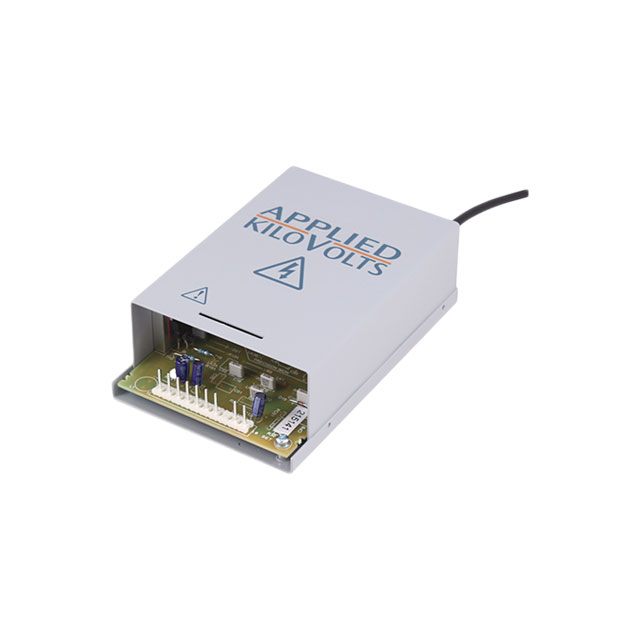

HP2.5PAA025
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER 10V-2500V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HP2.5PAA025
ActiveApplied Kilovolts Ltd.
DC/DC CONVERTER 10V-2500V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HP2.5PAA025 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, cURus |
| Current - Output (Max) [Max] | 4 mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 5.79 " |
| Size / Dimension [x] | 147 mm |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [z] | 47 mm |
| Size / Dimension [z] | 1.85 in |
| Type | Enclosed, High Voltage |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Output 1 [Max] | 2500 V |
| Voltage - Output 1 [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 468.18 | |
| 5 | $ 452.57 | |||
| 10 | $ 444.77 | |||
Description
General part information
HP2.5PAA025
Enclosed, High Voltage DC DC Converter 1 Output 10V ~ 2500V 4mA 26.4V Input
Documents
Technical documentation and resources
