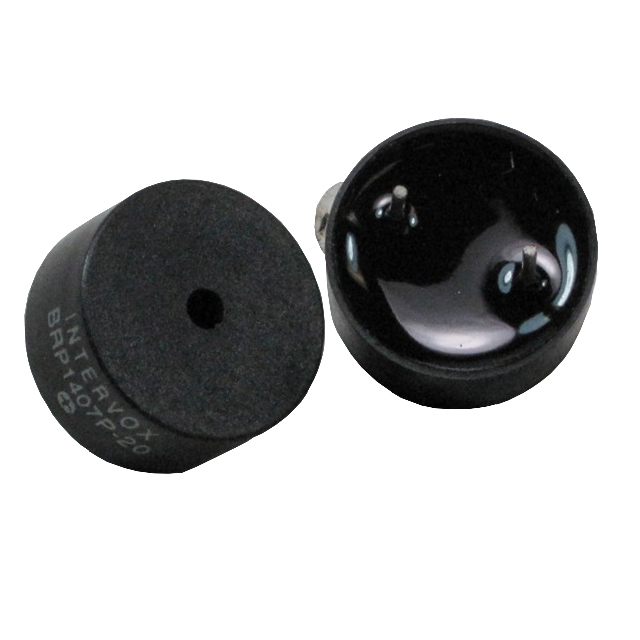

BRP1407P-20
ActiveInternational Components Corp.
BUZZER PIEZO 20V 13.8MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BRP1407P-20
ActiveInternational Components Corp.
BUZZER PIEZO 20V 13.8MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BRP1407P-20 |
|---|---|
| Current - Supply | 1 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 0.299 in |
| Height - Seated (Max) [Max] [z] | 7.6 mm |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Ratings | Washable |
| Size / Dimension | 13.8 mm |
| Size / Dimension [diameter] | 0.543 " |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 20 V |
| Voltage Range [Max] | 20 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 1.20 | |
| 500 | $ 1.05 | |||
| 1000 | $ 0.99 | |||
Description
General part information
BRP1407P-20
Buzzers Transducer, Externally Driven Piezo 20 V 1mA 4kHz 80dB @ 10V, 10cm Through Hole PC Pins
