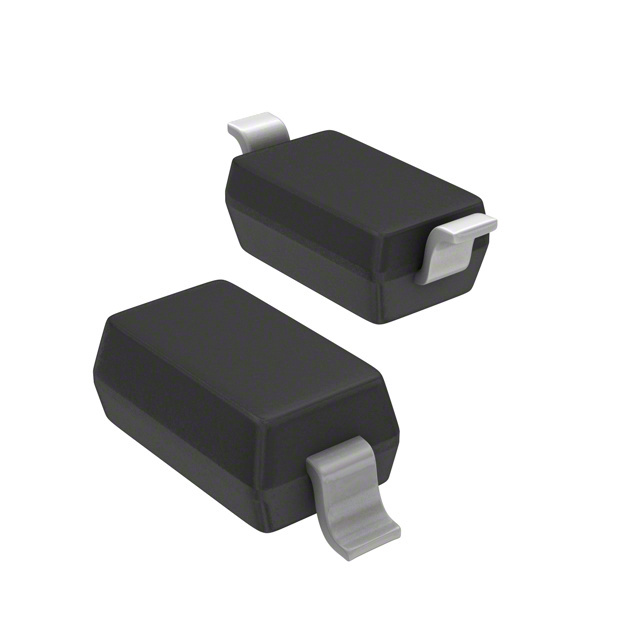

CMHZ4705 BK
ActiveCentral Semiconductor Corp
DIODE ZENNER 18V 500MW SOD-123
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMHZ4705 BK
ActiveCentral Semiconductor Corp
DIODE ZENNER 18V 500MW SOD-123
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMHZ4705 BK |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SOD-123 |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | SOD-123 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If [Max] | 1.5 V |
| Voltage - Zener (Nom) (Vz) | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CMHZ4705 BK
Zener Diode 18 V 500 mW ±5% Surface Mount SOD-123
Documents
Technical documentation and resources
