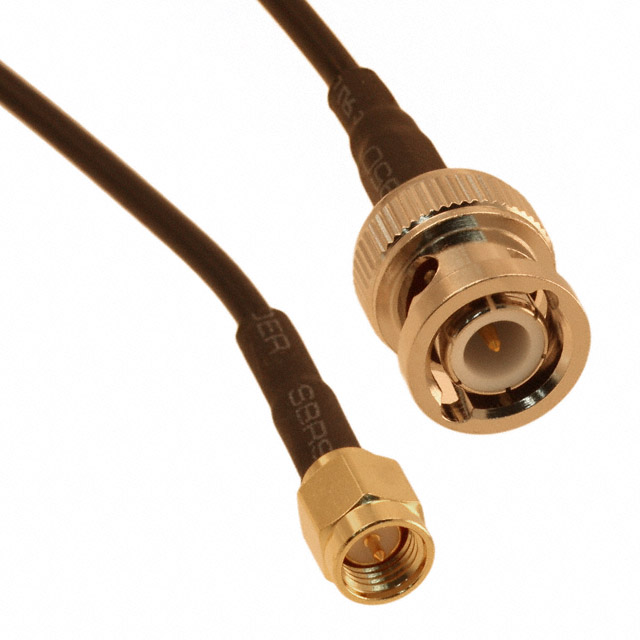

CCBNS-MM-RG174-18
ActiveCrystek Corporation
CBL ASSY BNC-SMA PLUG-PLUG 18"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCBNS-MM-RG174-18
ActiveCrystek Corporation
CBL ASSY BNC-SMA PLUG-PLUG 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCBNS-MM-RG174-18 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.46 | |
Description
General part information
CCBNS-MM-RG174-18
Cable Assembly Coaxial BNC to SMA RG-174 18.00" (457.20mm)
