DC1109
ActiveBirk Manufacturing

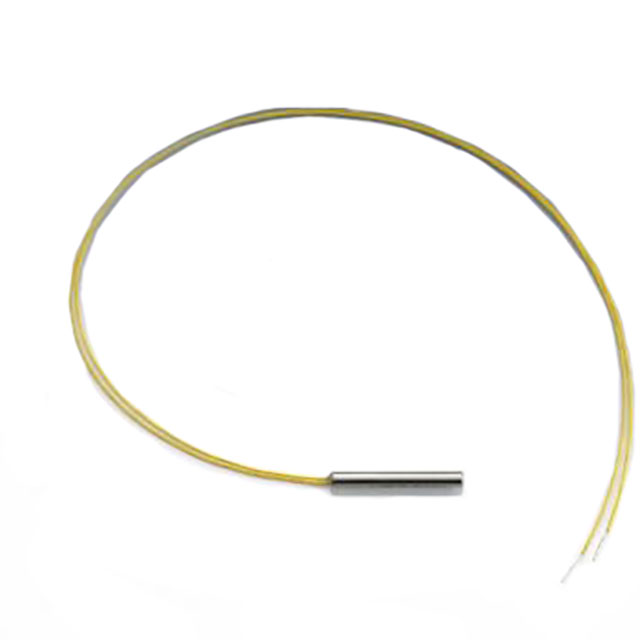

CARTRIDGE HEATER: 0.122 OD X 2.0
Deep-Dive with AI
Search across all available documentation for this part.
DC1109
ActiveBirk Manufacturing
CARTRIDGE HEATER: 0.122 OD X 2.0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC1109 |
|---|---|
| Attachment Method | No Pressure Sensitive Adhesive (PSA) |
| Color | Silver |
| Diameter [diameter] | 0.125 " |
| Diameter [diameter] | 3.18 mm |
| Length | 50.8 mm |
| Length | 2 in |
| Power (Watts) | 75 W |
| Resistance | 30.72 Ohms |
| Shape | Circular |
| Temperature Rating | 572 °F |
| Temperature Rating | 300 °C |
| Termination | Wire Leads |
| Type | Cartridge Heater |
| Voltage | 48 V |
| Watt Density @ 12V | 125 W/in² |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 106.26 | |
| 25 | $ 100.35 | |||
| 50 | $ 82.64 | |||
| 100 | $ 76.75 | |||
| 500 | $ 70.84 | |||
| 1000 | $ 60.05 | |||
| 5000 | $ 49.13 | |||
Description
General part information
DC1109
CARTRIDGE HEATER: 0.122 OD X 2.0
Documents
Technical documentation and resources
No documents available
