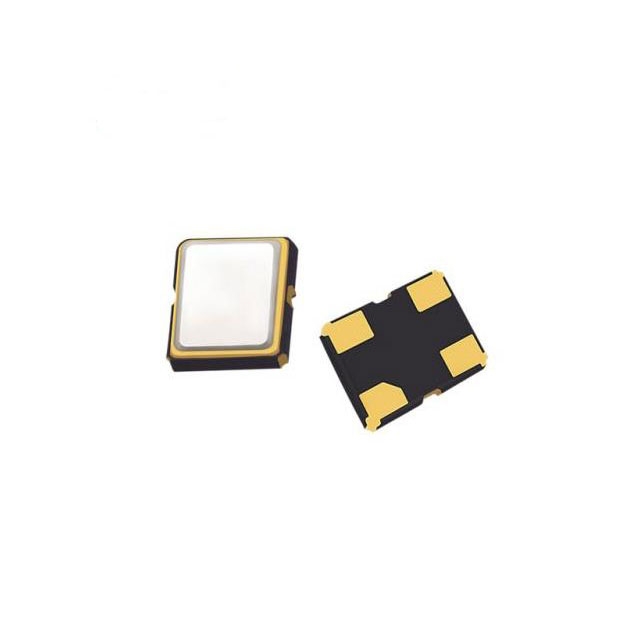

WTL2L60727VH
ActiveWTL
QUARTZ XTAL OSC 16MHZ CMOS SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WTL2L60727VH
ActiveWTL
QUARTZ XTAL OSC 16MHZ CMOS SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WTL2L60727VH |
|---|---|
| Base Resonator | Crystal |
| Frequency | 16 MHz |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 0.81 mm |
| Height - Seated (Max) [Max] | 0.032 in |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.99 | |||
| 50 | $ 0.92 | |||
| 100 | $ 0.82 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.99 | |||
| 50 | $ 0.92 | |||
| 100 | $ 0.82 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.64 | |||
| Tape & Reel (TR) | 3000 | $ 0.62 | ||
| 6000 | $ 0.60 | |||
| 15000 | $ 0.58 | |||
Description
General part information
WTL2L60727VH
16 MHz XO (Standard) CMOS Oscillator Enable/Disable 4-SMD, No Lead
